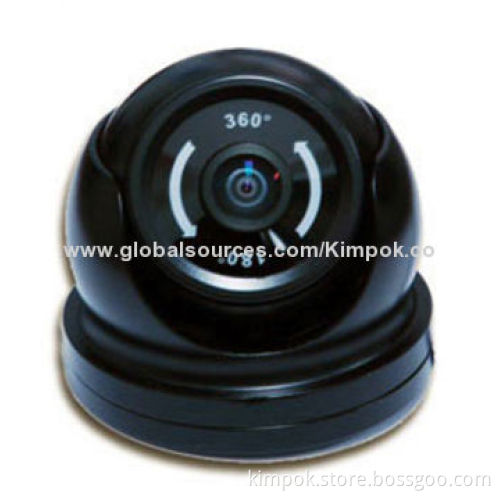

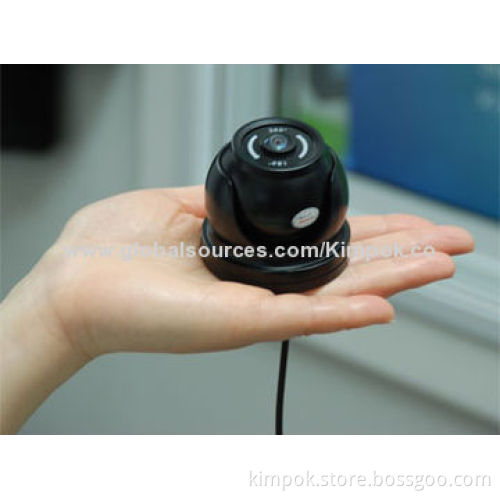

360° Wide Angle 600TVL Vandal-resistant Mini Dome Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Wire Transfer or PayPal

Product Description

Suitable for any outdoor application

Constructed with durable metal housing, compact design allows it to be placed virtually anywhere

Designed to provide high-resolution picture with very wide viewing angle

Great addition to any video surveillance system, especially inapplications subject to inclement weather conditions

Image pick-up device: 1/3-inch HD color CCD

Resolution:

TV system: NTSC/PAL

Scanning system: 2:1 interlaced

Synchronized system: internal

Scanning frequency: (H) 15.734 x (V) 59.94Hz

Horizontal resolution: 600TV lines

S/N ratio (AGC off): more than 48dB

Shutter speed: 1/50to 1/1000s

Minimum sensitivity: 0.01-lux (F2.0)

Gamma correction: 0.45 (approximately)

Gain control: automatic

Video output: BNC video 1.0Vp-p/75Ω

Lens standard: f2.2mm

Viewing angle:

Power source: 12V DC at 300mA

Power consumption: 2.5W (maximum)

Operating temperature: -20 to +50°C

Dimensions: (D) 37 x (L) 90mm

IP rating: IP67

Weight: 160g

Accessories: mounting bracket

PAL: 762 x 506 pixels

NTSC: 772 x 576 pixels

Wall mount: 180°

Ceiling mount: 360°
