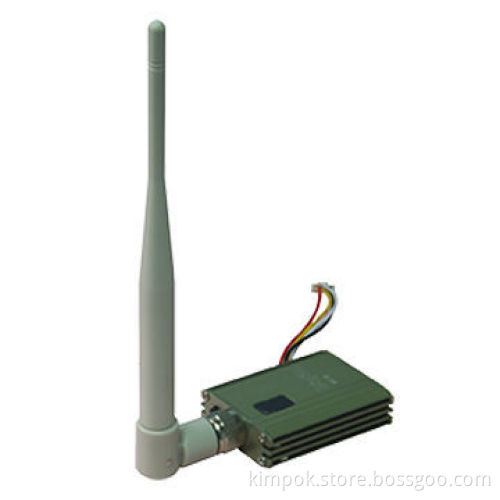

8-ch FPV wireless transmitter and receiver with 1.2G, 800m distance for unmanned equipmentsNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, T/T

Product Description

Professional 200mW wireless transmitter and receiver kit with audio and video, mainly used for CCTV cameras for long range wireless surveillance

With reliable performance and lightweight, it is also used in the line of FPV system, UAV, RC airplanes/helicopters, and more

Video and data signals at the same time in cars of unmanned equipment

Specifications:

Packing includes:

Installing:

The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack
Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation
Set the same channel with transmitter and receiver

Working voltage: 12V DC

Output frequency: 0.9/1.2/1.3G

Channel: 8-ch, video and audio synchronization

Output power: 400mW

Weight: 60g

Dimensions: (L)53x(W)41x(H)14mm

Transmit distance (open/unobstructed space): 400 to 800m

Transmitter with 12-ch receiver

Antenna

Video and transmitter connecting cable

Power adapters for transmitter and receiver

The line has 5 plugs for connecting transmitter, camera and power supply
