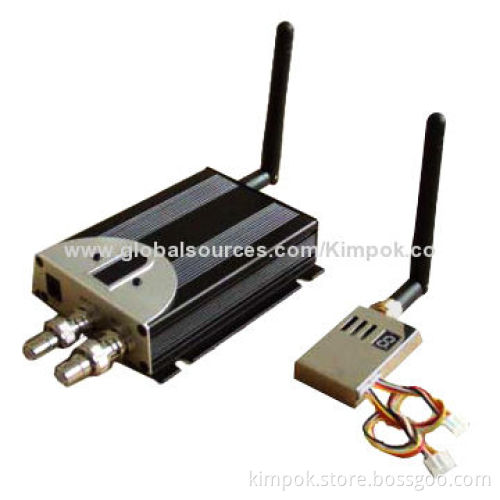

1.2GHz Wireless CCTV Video Transmitter and Receiver, 1,000mW and Lightweight for CCTV Surveillance
  • 1.2GHz Wireless CCTV Video Transmitter and Receiver, 1,000mW and Lightweight for CCTV Surveillance
1.2GHz Wireless CCTV Video Transmitter and Receiver, 1,000mW and Lightweight for CCTV Surveillance

1.2GHz Wireless CCTV Video Transmitter and Receiver, 1,000mW and Lightweight for CCTV Surveillance

Get Latest Price
Payment Type:
T/T, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal
Product Description
Product Description
  • With audio and video
  • Used for CCTV cameras for long range wireless surveillance
  • With reliable performance and lightweight
  • Also used in line of FPV system, UAV and RC airplanes/helicopters
  • Video and data signals at same time in cars of unmanned equipment
  • Transmitter parameters:
    • Working voltage: 12V DC
    • Working frequency: 2.4G (8), 1.3G (4), 1.2G (4) or 0.9G (4CH)
    • Output: 1,000mW
    • Dimension: 45x28x9mm
    • Weight: 24g (single transmitter)
  • Receiver parameters:
    • Working voltage: 12V DC
    • Working frequency: 0.9 to 1.2G (12) and 2.4G (12CH)
    • Dimension: 100x81x25mm
    • Weight: 141g
  • Installing:
    • Line has 5 plugs for connecting transmitter, camera and power supply
    • One of line's points connecting to transmitter and another has 4 plugs (red, yellow, white and black)
    • Red plug connect 12V DC/1,000mA, can also connect battery
    • White and yellow plug connect to cameras audio and video apart and black one connects cameras power input jack
    • Push control button, can change channel of receiver
    • Meanwhile, push and last several seconds, can close digital play and turn into saving power model
    • Then push again, can replay
    • Function can be able to lock channel, so as to avoid mistaking operation
    • Set same channel with transmitter and receiver
  • Packing includes:
    • Transmitter
    • 12-channel receiver
    • Antenna
    • Video cable and transmitter connecting cable
    • Power adapters for transmitter and receiver
  • Working voltage: 12V DC
  • Working frequency: 2.4G (8), 1.3G (4), 1.2G (4) or 0.9G (4CH)
  • Output: 1,000mW
  • Dimension: 45x28x9mm
  • Weight: 24g (single transmitter)
  • Working voltage: 12V DC
  • Working frequency: 0.9 to 1.2G (12) and 2.4G (12CH)
  • Dimension: 100x81x25mm
  • Weight: 141g
  • Line has 5 plugs for connecting transmitter, camera and power supply
  • One of line's points connecting to transmitter and another has 4 plugs (red, yellow, white and black)
  • Red plug connect 12V DC/1,000mA, can also connect battery
  • White and yellow plug connect to cameras audio and video apart and black one connects cameras power input jack
  • Push control button, can change channel of receiver
  • Meanwhile, push and last several seconds, can close digital play and turn into saving power model
  • Then push again, can replay
  • Function can be able to lock channel, so as to avoid mistaking operation
  • Set same channel with transmitter and receiver
  • Transmitter
  • 12-channel receiver
  • Antenna
  • Video cable and transmitter connecting cable
  • Power adapters for transmitter and receiver
