Newest 5.8G, 9CH with 800m FPV Wireless Video Tranmsitter and Receiver for Unmanned VehiclesNew

Newest 5.8G, 9CH with 800m FPV Wireless Video Tranmsitter and Receiver for Unmanned VehiclesNew

Get Latest Price

Payment Type:: PayPal, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, T/T

Product Description

Professional 200mW wireless transmitter and receiver kit with audio and video, mainly used for CCTV cameras for long range wireless surveillance

With reliable performance and light weight, it is also used in the line of FPV system, UAV, RC airplanes/helicopters, etc, Video and Data signals at the same time in cars of Unmanned Equipment

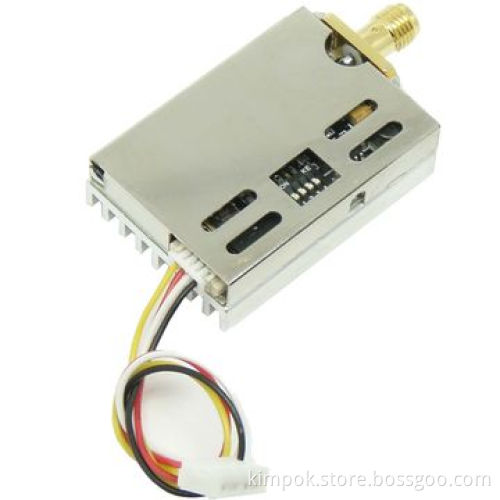

Transmitter parameter:

Weight: 19g
Dimension: 39*27*11mm
Working voltages: DC 5-15V
Working current: 220mA
Working frequency: 5.8G
Working channels: 9CH
Working power: 400mW
Transmitting range: 400-800m (In Open Fields)
Transmitter accessories: transmitter, Tx cable.(We don’t offer adatper for transmitter, please use DC 12V 1A adapter)

Receiver parameter:

Weight: 35g
Dimension: 69*37*7mm
Working voltage: DC12V
Working current: 200mA
Working frequency: 5.8G
Working channels: 9CH
Receiver accessories: Receiver, antenna, TX cable. (We don’t offer adatper for receiver, please use DC 12V 1A adapter)
The whole set is about 310g

Installing:

The line has 5 plugs for connecting transmitter, camera and power supply. One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black). Red plug connect DC 12V/1000mA,can also connect battery. White and yellow plug connect to camera's audio and video apart. And black one connects camera's power input jack
Push the control button, can change the channel of receiver. Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model. Then push it again, can replay. The function can be able to lock channel, so as to avoid mistaking operation
Set the same channel with transmitter and receiver

Weight: 19g

Dimension: 39*27*11mm

Working voltages: DC 5-15V

Working current: 220mA

Working frequency: 5.8G

Working channels: 9CH

Working power: 400mW

Transmitting range: 400-800m (In Open Fields)

Transmitter accessories: transmitter, Tx cable.(We don’t offer adatper for transmitter, please use DC 12V 1A adapter)

Weight: 35g

Dimension: 69*37*7mm

Working voltage: DC12V

Working current: 200mA

Working frequency: 5.8G

Working channels: 9CH

Receiver accessories: Receiver, antenna, TX cable. (We don’t offer adatper for receiver, please use DC 12V 1A adapter)

The whole set is about 310g

The line has 5 plugs for connecting transmitter, camera and power supply. One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black). Red plug connect DC 12V/1000mA,can also connect battery. White and yellow plug connect to camera's audio and video apart. And black one connects camera's power input jack

Push the control button, can change the channel of receiver. Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model. Then push it again, can replay. The function can be able to lock channel, so as to avoid mistaking operation

Set the same channel with transmitter and receiver
