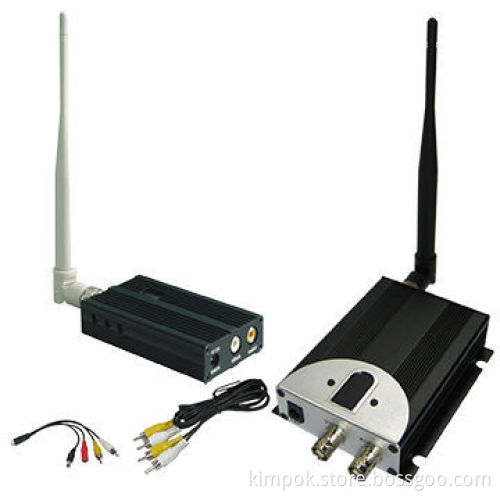

1.2GHz 2,500mW AV sender wireless transmitter and receiver with 8CH, 3,000m distanceNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or PayPal

Product Description

Specifications:

Package:

Installing:

Line has 5 plugs for connecting transmitter, camera and power supply
One of line's points connecting to transmitter and another has 4 plugs (red, yellow, white and black)
Red plug connect 12V DC/1,000mA, can also connect battery
White and yellow plug connect to cameras audio and video apart and black one connects cameras power input jack
Push control button, can change channel of receiver
Meanwhile, push and last several seconds, can close digital play and turn into saving power model
Then push again, can replay
Function can be able to lock channel, so as to avoid mistaking operation
Set same channel with transmitter and receiver

Working voltage: DC 12V

Output frequencies: 0.9/1.2/1.3G

Channel: 8CHS, video and audio synchronization

Output power: 2500mW

Weight: 104g

Dimensions (L*W*H): 93*52*20mm

Transmit distance (open/unobstructed space): 1,000 - 3,000m

Transmitter

12-channel receiver

Antenna

Video cable and transmitter connecting cable

Power adapters for transmitter and receiver
