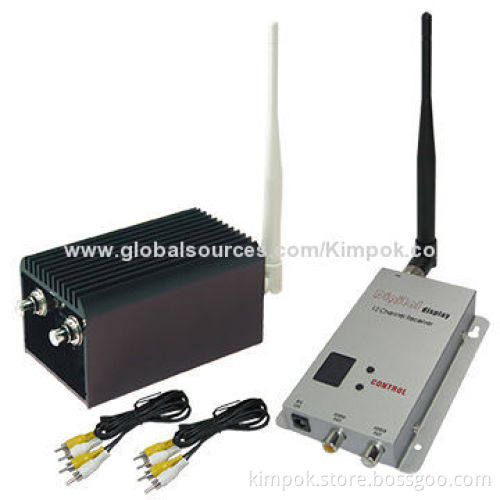

UAV Long distance wireless video transmitter and receiver with 2W power for unmanned helicopter

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal

Product Description

With audio and video

Used for CCTV cameras for long range wireless surveillance

With reliable performance and lightweight

Also used in line of FPV system, UAV and RC airplanes/helicopters

Video and data signals at same time in cars of unmanned equipment

Specifications:

Packing includes:

Installing:

Line has 5 plugs for connecting transmitter, camera and power supply
One of line's points connecting to transmitter and another has 4 plugs (red, yellow, white and black)
Red plug connect 12V DC/1000mA and can also connect battery
White and yellow plug connect to camera's audio and video apart and black one connects camera's power input jack
Push control button and can change channel of receiver
Meanwhile, push and last several seconds, can close digital play and turn into saving power model
Then push it again and can replay
Function can be able to lock channel and so as to avoid mistaking operation
Set same channel with transmitter and receiver

Working voltage: 12V DC

Output frequencies: 0.9/1.2/1.3GHz

Channel: 8CH, video and audio synchronization

Output power: 2,000mW

Weight: 338g

Dimensions: (L)111 x (W) 67 x (H) 60mm

Transmit distance (open/unobstructed space): 1,000 to 3,500m

400mW transmitter

12-channel receiver

Antenna

Video cable and transmitter connecting cable

Power adapters for transmitter and receiver
