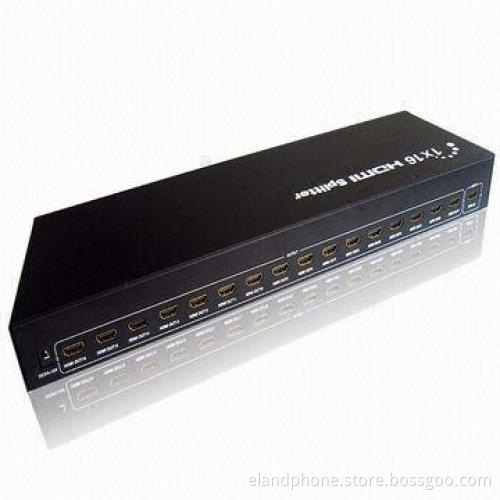

HDMI 1 x 16 Splitter, Supports 3-D, Distributes 1 HDMI Source to 16 HDMI Displays

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

HDMI® version: HDMI®1.3

HDCP version: HDCP1.2

HDMI® resolution:24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Supported video color format: 24/deep color 30/36 bit

Supported audio format:TS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Maximum bandwidth: 225MHz

Maximum band rate: 6.75Gbps

Input/output TMDS signal: 0.5 to 1.5Vp-p(TTL)

Input/Output DDC signal: 5Vp-p (TTL)

Input cable distance: ≤15m HDMI® AWG26

Output cable distance: ≤20m AWG26 HDMI® 1.3 standard cable

Maximum working current: 1.4A

Power adapter format:

Operating temperature rang: (-15 to +55°C)

Operating humidity range: 5 to 90% RH

No condensation

Dimensions: (L) 280 x(W)158 x (W) 25mm

Input: 50/60Hz, 100 to 240V AC

Output: 5V/1A DC
