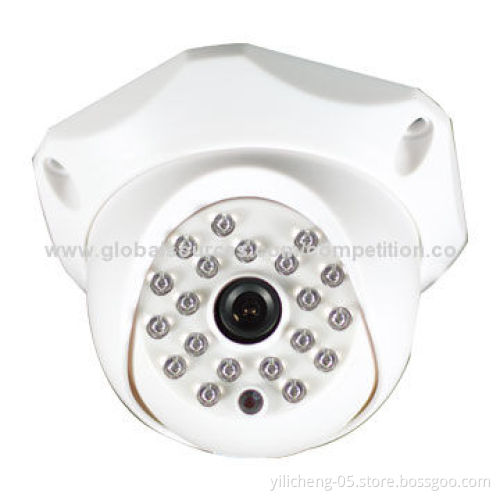

CCTV/Plastic IR Indoor Dome Camera, Eyeball Product Seriation Housing Design, Sony Effio, 700TVL
- Payment Type:
- L/C, TT
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | L/C, TT |
|---|
Product Description
Product Description
- Eyeball product seriation housing design
- 12/24/36 IR built-in optional
- Fixed board lens and varifocal lens optional
- Megapixel board lens ensure the image performance
- External focal adjustment for easy installation
- Pick-up device: 1/3-inch Sony Super HAD CCD (ICX811/810 + Effio 4140)
- Scanning system: 2:1 interlace
- Picture elements:
- NTSC (H x V): 976 x 494 pixels
- PAL (H x V): 976 x 582 pixels
- Horizontal resolution: 700TVL
- Lens: fixed 3.6mm CS mount H.R lens
- Minimum illumination: 0.01 Lux (day), 0.003 Lux (night), 0.0003 Lux (DSS)/F1.2
- Auto white balance: auto/indoor/outdoor/user's manual/push auto
- Auto gain control: auto/user's manual
- Gamma correction: 0.45
- S/N ratio: more than 50dB
- Video output: 1.0Vp-p, 75 Ohms
- IR LED: 5ψ IR LED x 20 pieces
- IR trigger: 3/4 Lux IR on/off
- Sense up: off/x2/x4/x8/x16/x32/x64/x128/x256
- Privacy masking: 8 zones
- Dynamic range: digital WDR (0-20dB)
- On-screen-display (OSD): 8 languages
- digital slow shutter (DSS): off, 2-20, 40, 80, 160, 256 FLD
- Flicker sound: on/off (NTSC: 1/100, PAL: 1/120)
- Digital zoom: 16x
- Digital noise reduction: 2D-DNR
- Camera title: up to 16 characters
- Mirror: horizontal/vertical/rotate
- Positive/negative: on/off
- Waterproofing criterion: IP 66
- Power consumption: 110mA IR on 310mA
- Power source: 12V DC ± 10%
- Working temperature: -10 to 50℃
- Dimensions: ψ105 x 80mm
- Weight: approximately 150g
- NTSC (H x V): 976 x 494 pixels
- PAL (H x V): 976 x 582 pixels
