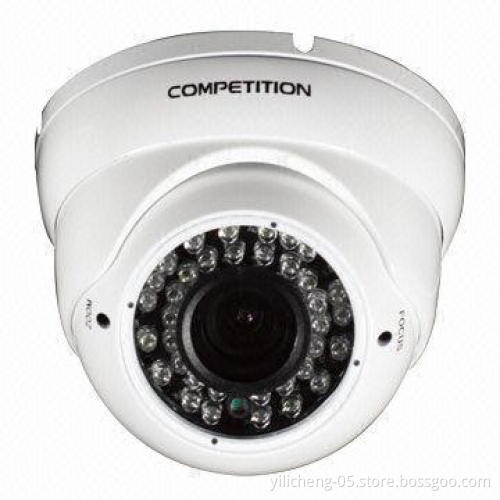

CCTV, Metal Array IR Outdoor Dome Camera, 3-axis Product Seriation Housing Design, Sony Effio 700TVL

CCTV, Metal Array IR Outdoor Dome Camera, 3-axis Product Seriation Housing Design, Sony Effio 700TVL

Get Latest Price

Payment Type:: L/C, TT

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, TT

Product Description

Features:

3-axis product seriation housing design
Advanced array IR LED built-in for longer viewing range
CS mount lens ensures outstanding picture quality
Weatherproof IP66 with vandal-proof protection
Sony Effio 700TVL with ICR optional

Specifications:

Pickup device: 1/3-inch Sony super HAD CCD (ICX811/810 + Effio 4140)
Scanning system: 2:1 interlace
Picture elements:
NTSC: 976 (H) x 494 (V)
PAL: 976 (H) x 582 (V)
Horizontal resolution: 700TVL
Lens: fixed 3.6mm and optional varifocal 4-9mm board type HR lens
Minimum illumination: 0.01lux (day), 0.003lux (night), 0.0003lux (DSS)/F1.2
Auto white balance: auto/indoor/outdoor/user's manual/push auto
Auto gain control: auto/user's manual
Gamma correction: 0.45
S/N ratio: more than 50dB
Video output: 1.0Vp-p, 75Ω
IR LED: 5Ø IR LED x 36pcs
IR trigger: 3/4lux IR on/off
Sense up: off/x2/4/8/16/32/64/128/256
Privacy masking: 8 zones
Dynamic range: digital WDR (0-20dB)
On-screen display (OSD): 8 languages
Digital slow shutter (DSS): off, 2-20, 40, 80, 160, 256 FLD
Flicker sound: on/off (NTSC: 1/100, PAL: 1/120)
Digital zoom: 16x
Digital noise reduction: 2D-DNR
Camera title: up to 16 characters
Mirror: horizontal/vertical/rotate
Positive/negative: on/off
Waterproof criterion: IP66
Power consumption: 110mA IR on 310mA
Power source: 12V DC ± 10%
Working temperature: -10 to 50°C
Dimensions: Ø120 x 100mm
Weight: approximates 660g

3-axis product seriation housing design

Advanced array IR LED built-in for longer viewing range

CS mount lens ensures outstanding picture quality

Weatherproof IP66 with vandal-proof protection

Sony Effio 700TVL with ICR optional

Pickup device: 1/3-inch Sony super HAD CCD (ICX811/810 + Effio 4140)

Scanning system: 2:1 interlace

Picture elements:
NTSC: 976 (H) x 494 (V)
PAL: 976 (H) x 582 (V)

Horizontal resolution: 700TVL

Lens: fixed 3.6mm and optional varifocal 4-9mm board type HR lens

Minimum illumination: 0.01lux (day), 0.003lux (night), 0.0003lux (DSS)/F1.2

Auto white balance: auto/indoor/outdoor/user's manual/push auto

Auto gain control: auto/user's manual

Gamma correction: 0.45

S/N ratio: more than 50dB

Video output: 1.0Vp-p, 75Ω

IR LED: 5Ø IR LED x 36pcs

IR trigger: 3/4lux IR on/off

Sense up: off/x2/4/8/16/32/64/128/256

Privacy masking: 8 zones

Dynamic range: digital WDR (0-20dB)

On-screen display (OSD): 8 languages

Digital slow shutter (DSS): off, 2-20, 40, 80, 160, 256 FLD

Flicker sound: on/off (NTSC: 1/100, PAL: 1/120)

Digital zoom: 16x

Digital noise reduction: 2D-DNR

Camera title: up to 16 characters

Mirror: horizontal/vertical/rotate

Positive/negative: on/off

Waterproof criterion: IP66

Power consumption: 110mA IR on 310mA

Power source: 12V DC ± 10%

Working temperature: -10 to 50°C

Dimensions: Ø120 x 100mm

Weight: approximates 660g
