Oil suction drainers

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

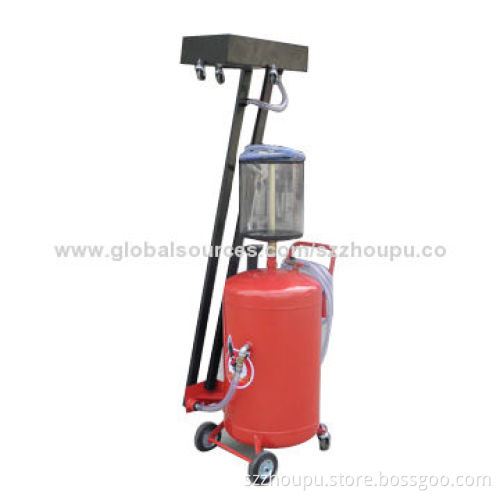

Universal pantograph oil suction/drainer for cars with bowl, with wheel-mounted 70-liter tank equipped with level-gauge, supplied with series of probes

Due to their versatility, these pantograph oil suction/drainers are universal drainers because they can be used to change the oil of all motor vehicles:

By gravity with tank on floor - by gravity with tank raised, with motor vehicles placed on auto lift or pit
By suction with probe inserted directly in the engine, and anywhere because they do not require continuous connection to the compressed-air line or to other energy sources (oil must be hot 50/80°C)
Article 3190
Tank capacity: 70L
Maximum draining capacity: 65L
Chamber capacity: 10L
Bowl capacity: 15L
Depressurizing pressure: 7-bar
Depressurization time: 10s-2min
Suction speed with oil at 50 to 80°C: 0.6 to 1.6L/min
Suction/draining hose: 1.5m
Maximum discharge pressure: 1 bar
Noise level: 75dB
Net weight: 29.5kg
Gross weight: 32kg
Measurement: 500 x 400 x 960, 270 x 270 x 420 and 1,460 x 85 x 95mm

By gravity with tank on floor - by gravity with tank raised, with motor vehicles placed on auto lift or pit

By suction with probe inserted directly in the engine, and anywhere because they do not require continuous connection to the compressed-air line or to other energy sources (oil must be hot 50/80°C)

Article 3190

Tank capacity: 70L

Maximum draining capacity: 65L

Chamber capacity: 10L

Bowl capacity: 15L

Depressurizing pressure: 7-bar

Depressurization time: 10s-2min

Suction speed with oil at 50 to 80°C: 0.6 to 1.6L/min

Suction/draining hose: 1.5m

Maximum discharge pressure: 1 bar

Noise level: 75dB

Net weight: 29.5kg
