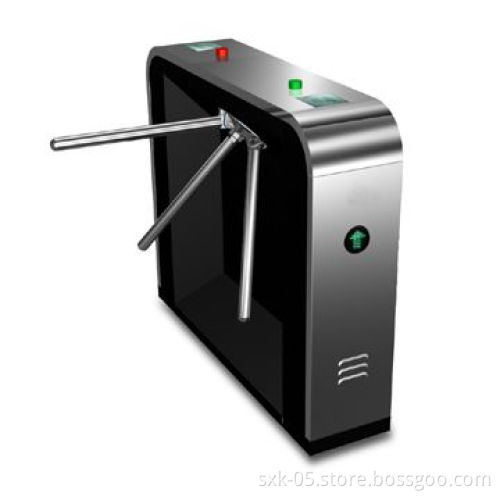

Bridge-type Tripod Turnstile in Round Curve Design, with 40W Power Consumption
  • Bridge-type Tripod Turnstile in Round Curve Design, with 40W Power Consumption
Bridge-type Tripod Turnstile in Round Curve Design, with 40W Power Consumption

Bridge-type Tripod Turnstile in Round Curve Design, with 40W Power Consumption

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Single/double walkway controlled in one direction or both
    • A valid lock action can allow one passage at one time
    • Normally open the machine will unlock when a valid signal is received
    • It will lock automatically if passage through turnstile is not completed within preset time the set time can be adjusted via parameter change
    • Emergency configuration:
    • The tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency
    • Control panel with count and LED digital function
    • LED indicator: a red cross symbol indicates the unit is not available for passes and green arrow indicates the direction of permitting pass
  • Specifications:
    • Power consumption: 40W, 50/60Hz
    • Housing size: 1,200 x 280 x 980mm
    • Net weight: 70kg
    • Housing material: 1.5 to 2mm, 304# stainless steel
    • Channel width: 510mm
    • Pass speed: 25 to 30 persons/minimum
    • Control circuit: 24V DC
    • Shock absorber: hydraulic
    • Protection grade: IP44
    • Communication port: RS485
    • Electromagnet: duty cycle 100%
    • Operating temperatures: -10 to 50°C
    • Working environments: indoor and outdoor
    • Relative humidity: d95% RH coagulation-free
    • MCBF: 2,000,000 cycle
  • Single/double walkway controlled in one direction or both
  • A valid lock action can allow one passage at one time
  • Normally open the machine will unlock when a valid signal is received
  • It will lock automatically if passage through turnstile is not completed within preset time the set time can be adjusted via parameter change
  • Emergency configuration:
  • The tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency
  • Control panel with count and LED digital function
  • LED indicator: a red cross symbol indicates the unit is not available for passes and green arrow indicates the direction of permitting pass
  • Power consumption: 40W, 50/60Hz
  • Housing size: 1,200 x 280 x 980mm
  • Net weight: 70kg
  • Housing material: 1.5 to 2mm, 304# stainless steel
  • Channel width: 510mm
  • Pass speed: 25 to 30 persons/minimum
  • Control circuit: 24V DC
  • Shock absorber: hydraulic
  • Protection grade: IP44
  • Communication port: RS485
  • Electromagnet: duty cycle 100%
  • Operating temperatures: -10 to 50°C
  • Working environments: indoor and outdoor
  • Relative humidity: d95% RH coagulation-free
  • MCBF: 2,000,000 cycle
