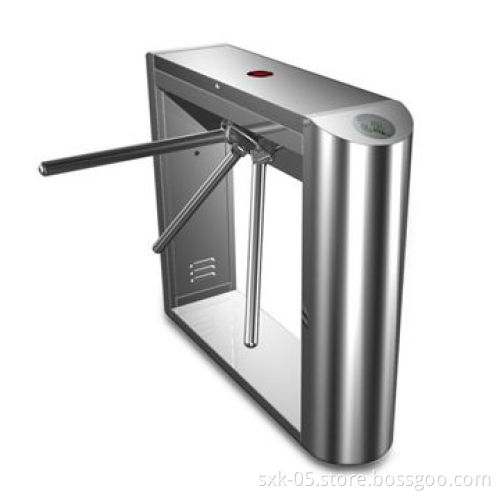

Bridge-type Tripod Turnstile with Round Curved Design and Two Ways Access
  • Bridge-type Tripod Turnstile with Round Curved Design and Two Ways Access
Bridge-type Tripod Turnstile with Round Curved Design and Two Ways Access

Bridge-type Tripod Turnstile with Round Curved Design and Two Ways Access

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Single/double walkway controlled in one direction or both
    • A valid lock action can allow one passage at one time
    • Normally open the machine will unlock when a valid signal isreceived
    • It will lock automatically if passage through turnstile is notcompleted within preset time, the set time can be adjusted viaparameter change
  • Emergency configuration:
    • The tripod will drop automatically by power off or by hand toprovide a clear walkway for escape in the event of anemergency
    • Control panel with count and LED digital function
    • LED indicator: A red cross symbol indicates the unit is notavailable for passes and green arrow indicates the direction ofpermitting pass
  • Specification:
    • Power consumption: 50W
    • Housing size: 1,200x 280 x 980mm
    • Net weight: 70kg
    • Housing material: 1.5 to 2mm, 304# stainless steel
    • Channel width: 510mm
    • Pass speed: 25 to 30 persons/minimum
    • Control circuit: 24V DC
    • Shock absorber: hydraulic
    • Protection grade: IP44
    • Communication port: RS485
    • Electromagnet: duty cycle 100%
    • Operating temperature: -10 to 50°C
    • Working environments: indoor and outdoor
    • Relative humidity: d95% RH coagulation free
    • MCBF: 2,000,000 cycles
  • Single/double walkway controlled in one direction or both
  • A valid lock action can allow one passage at one time
  • Normally open the machine will unlock when a valid signal isreceived
  • It will lock automatically if passage through turnstile is notcompleted within preset time, the set time can be adjusted viaparameter change
  • The tripod will drop automatically by power off or by hand toprovide a clear walkway for escape in the event of anemergency
  • Control panel with count and LED digital function
  • LED indicator: A red cross symbol indicates the unit is notavailable for passes and green arrow indicates the direction ofpermitting pass
  • Power consumption: 50W
  • Housing size: 1,200x 280 x 980mm
  • Net weight: 70kg
  • Housing material: 1.5 to 2mm, 304# stainless steel
  • Channel width: 510mm
  • Pass speed: 25 to 30 persons/minimum
  • Control circuit: 24V DC
  • Shock absorber: hydraulic
  • Protection grade: IP44
  • Communication port: RS485
  • Electromagnet: duty cycle 100%
  • Operating temperature: -10 to 50°C
  • Working environments: indoor and outdoor
  • Relative humidity: d95% RH coagulation free
  • MCBF: 2,000,000 cycles
