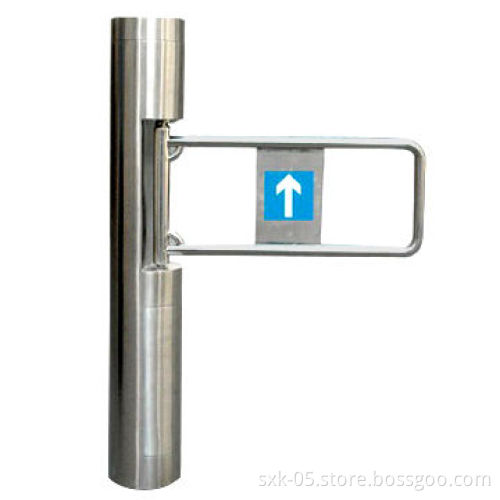

Pedestrian Swing Gate, Applied for Shopping Mall, Railway Station and Subway

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Bidirectional function (can enter from both end)
Fail safe, which means arm will be opened when power off (orfail secure, which means arm will be locked when power off)
Auto-lock function, arm will be locked after legal pass-throughinterval over
Anti-clamping function, arms will remain opened continuallywhile passenger holds arm not at locking position
Specially designed separation technologies of transmission ofgear wheel, slave gear will separate master gear immediately whenrevolving barrier meet obstacle until obstacle removed and thuswill not damage either gear wheel or electro-motor
Anti-tail-after detector (customized, needs to add pair ofinfrared detector inside cabinet on both end so can detect illegalinvasion on both end (optional)
Push-button and wireless remotes (customized)
Installation steps:
- Connects with 220V AC
- Connects with left-open, right-open and COM three ports
Widely applied to shopping malls, railway stations, subway andpedestrian passage

Specification:

Voltage: 220V AC at 50Hz
Working temperature: -30 to 60°C/-22 to 140°F
Working humidity: 5 to 90%RH
Communication interface: RS485
Driving motor: brushed DC motor (24V)
Input interface: dry contact signal, 12V level signal or 12Vpulse signal with ≥100ms pulse width and ≥10mA drivingcurrent
Passage speed: 40 persons/minute (constantly open) and 25 to 30persons/minute (constantly closed)
Arm opening and closing interval: 1 to 2s
Material: 304 stainless steel
Thickness: 2.0mm, brushed or polished finished
Dimension:
- Pole diameter: 169mm
- Pole height: 1,050mm/3.44ft
- Arm length: 500 to 900mm (default length 500mm)

Packing:

Weight: 40kg
