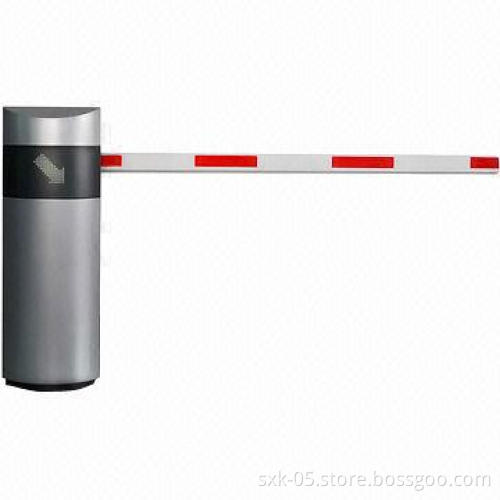

High-speed Barrier Gate Operator with Arm Auto Reverse and Swing Away Mechanism

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

High-speed
Unique design for housing with features of state of art workmanship and multicolor LED arrow sign
System can be reset automatically when power on
Strong weather-resistant metal structure
Special craft machine core with mechanism and electronic technology which just need one standard of balance spring
Compress spring prevent system accident from drawing spring breaking, which often happen
Remote control with three buttons to control the barrier gate up, down, stop, safety and easy using
Arm auto reverse: built-in smart collision detection technology
Arm will auto reverse when hit with an obstacle during closing to prevent further damages
Infrared photoelectric cell and rubber lining also can work for anti-bumping function
Swing away mechanism will sheer off in case of accidental collision with boom arm and to prevent damage to barrier and arm
Radio/line key control selection
Machine core can automatically adapts to low temperature
Automatically warming when outside temperature is below zero centigrade
Manual release clutch can be conveniently unlocked to manual open the arm without removing top cover/body housing
Cooling: forced ventilation with fan
Red and green traffic lights connection
Vehicles detector connection
RS-485 communication
Suitable for vehicle flux control of access in private/public car parks, in residential/traffic areas

Specification:

High-speed

Unique design for housing with features of state of art workmanship and multicolor LED arrow sign

System can be reset automatically when power on

Strong weather-resistant metal structure

Special craft machine core with mechanism and electronic technology which just need one standard of balance spring

Compress spring prevent system accident from drawing spring breaking, which often happen

Remote control with three buttons to control the barrier gate up, down, stop, safety and easy using

Arm auto reverse: built-in smart collision detection technology

Arm will auto reverse when hit with an obstacle during closing to prevent further damages

Infrared photoelectric cell and rubber lining also can work for anti-bumping function

Swing away mechanism will sheer off in case of accidental collision with boom arm and to prevent damage to barrier and arm

Radio/line key control selection

Machine core can automatically adapts to low temperature

Automatically warming when outside temperature is below zero centigrade

Manual release clutch can be conveniently unlocked to manual open the arm without removing top cover/body housing

Cooling: forced ventilation with fan

Red and green traffic lights connection

Vehicles detector connection

RS-485 communication

Suitable for vehicle flux control of access in private/public car parks, in residential/traffic areas

Rated power: 120W

Rated voltage: 220 or 110V AC, ±10%

Casing: metal enclosure with powder coating

Arm length: 3m

Working temperature: -25 to 75°C

Humidity: <90% RH

Opening time: <1.1 seconds

Operation cycle: ≥5 millions

Protection grade: IP54

Remote control distance: ≥30m

Physical dimension: 1030 x 320 x 330mm

Net weight: 47kg (excluding arm)
