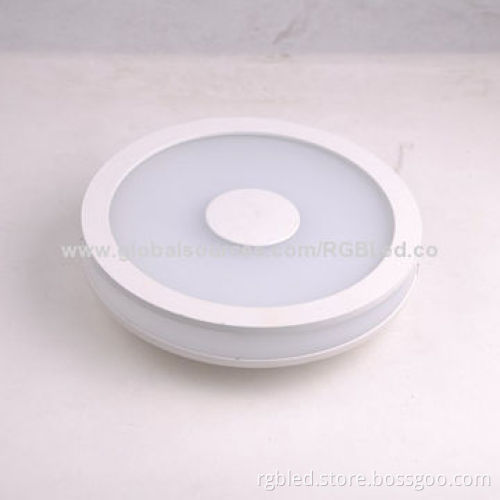

LED Panel light, 184mm diameter, 90pcs 2835SMD, 20W, 1150lm, 85 to 265V AC
  • LED Panel light, 184mm diameter, 90pcs 2835SMD, 20W, 1150lm, 85 to 265V AC
  • LED Panel light, 184mm diameter, 90pcs 2835SMD, 20W, 1150lm, 85 to 265V AC
  • LED Panel light, 184mm diameter, 90pcs 2835SMD, 20W, 1150lm, 85 to 265V AC
LED Panel light, 184mm diameter, 90pcs 2835SMD, 20W, 1150lm, 85 to 265V AC
LED Panel light, 184mm diameter, 90pcs 2835SMD, 20W, 1150lm, 85 to 265V AC
LED Panel light, 184mm diameter, 90pcs 2835SMD, 20W, 1150lm, 85 to 265V AC

LED Panel light, 184mm diameter, 90pcs 2835SMD, 20W, 1150lm, 85 to 265V AC

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • LED jade lamp with die-cast aluminum housings
  • Simple, elegant, looks sprayed white appearance
  • Products uses high brightness LED light source
  • Power supply with constant current, flicker-free, glare-free, uniform soft light, low-power, energy-saving and environment-protection
  • Long service lifespan of 50,000 hours embedded installation
  • Fast and easy installation
  • Power parameters:
    • Project parameters:
      • Input voltage/frequency: AC 85-265V 50/60Hz
      • Input current (typ): 0.052A
      • Output voltage: DC 30-36V
      • Output current: 360mA
      • Power: 20W
      • Power factor (typ): PF> 0.90
      • Power efficiency (typ); η> 0.85
    • Lighting parameters:
      • Lamp beads LED chips quantity: 90 (2835)pcs
      • Flux lumen output: 1102 ± 50lm
      • Color temperature: 3000K/6000K
      • CRI: ≥80Ra
      • Viewing angle: 140 °
      • Dimensions: φ184mm
      • Hole size: φ160mm
      • Operating temperature: -25-60℃
      • Storage temperature: -40-80℃
      • IP grade: IP54
      • Lumen maintenance: 85% (5000hrs)
      • Lifespan: 50000hrs
      • Lamp type: II type lamps
      • Appliance class: class II
  • Project parameters:
    • Input voltage/frequency: AC 85-265V 50/60Hz
    • Input current (typ): 0.052A
    • Output voltage: DC 30-36V
    • Output current: 360mA
    • Power: 20W
    • Power factor (typ): PF> 0.90
    • Power efficiency (typ); η> 0.85
  • Lighting parameters:
    • Lamp beads LED chips quantity: 90 (2835)pcs
    • Flux lumen output: 1102 ± 50lm
    • Color temperature: 3000K/6000K
    • CRI: ≥80Ra
    • Viewing angle: 140 °
    • Dimensions: φ184mm
    • Hole size: φ160mm
    • Operating temperature: -25-60℃
    • Storage temperature: -40-80℃
    • IP grade: IP54
    • Lumen maintenance: 85% (5000hrs)
    • Lifespan: 50000hrs
    • Lamp type: II type lamps
    • Appliance class: class II
  • Input voltage/frequency: AC 85-265V 50/60Hz
  • Input current (typ): 0.052A
  • Output voltage: DC 30-36V
  • Output current: 360mA
  • Power: 20W
  • Power factor (typ): PF> 0.90
  • Power efficiency (typ); η> 0.85
  • Lamp beads LED chips quantity: 90 (2835)pcs
  • Flux lumen output: 1102 ± 50lm
  • Color temperature: 3000K/6000K
  • CRI: ≥80Ra
  • Viewing angle: 140 °
  • Dimensions: φ184mm
  • Hole size: φ160mm
  • Operating temperature: -25-60℃
  • Storage temperature: -40-80℃
  • IP grade: IP54
  • Lumen maintenance: 85% (5000hrs)
  • Lifespan: 50000hrs
  • Lamp type: II type lamps
  • Appliance class: class II
