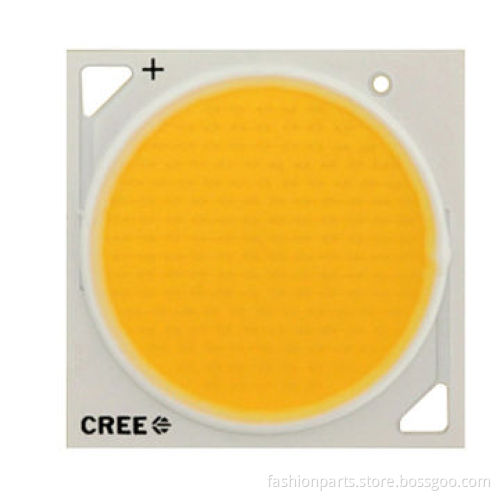

XLamp CXA3070 High Lumen Output and Efficacy from a Single Easy-to-use LED Array

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

XLamp CXA3070 LED array delivers high lumen output and high efficacy in a single

Easy-to-use package that eliminates the need for reflow soldering

Optimized to simplify designs and lower system cost

CXA3070 LED array can deliver system-level performance of 8000 to over 10000 lumens, enabling very high lumen output applications such as high bay and ceramic metal halide replacements

Size: 27.35 x 27.35mm

Product options: high-CRI

Maximum drive current: 2.8A

Maximum power: 117W

Light output: 9000–11000lm

LES: 23mm

Typical forward voltage at 1.925A, 85°C: 38.5V

Viewing angle: 115°

Binning 85°C, ANSI white, 2- and 4-step EasyWhite®

Certifications: RoHS and REACH
