White LEDs, High lumen output and efficacy from a single, easy-to-use LED array
  • White LEDs, High lumen output and efficacy from a single, easy-to-use LED array
White LEDs, High lumen output and efficacy from a single, easy-to-use LED array

White LEDs, High lumen output and efficacy from a single, easy-to-use LED array

Get Latest Price
Payment Type:
TT in advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT in advance
Product Description
Product Description

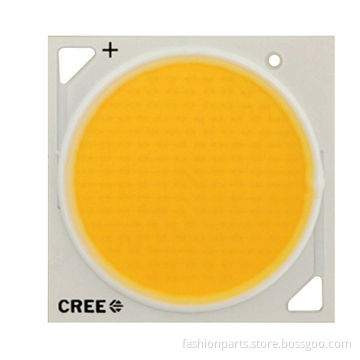

  • The XLamp CXA1507 LED Array delivers high lumen output and high efficacy in a single, easy-to-use package that eliminates the need for reflow soldering. Optimized to simplify designs and lower system cost, the CXA1507 LED Array can deliver system-level performance of 500 to over 1000 lumens, enabling applications ranging from GU10s to commercial downlights.
  • Specifications:
    • Size (mm x mm):15.85 x 15.85
    • Product options: 18-V, 37-V, high-CRI
    • Maximum drive current (A): 0.75 (18-V), 0.375 (37-V)
    • Maximum power (W): 14.8
    • Light output (lm): 700 – 1300
    • LES (mm): 9
    • Viewing angle (degrees): 115
    • Binning: 85 deg. C, ANSI White, 2- and 4-Step EasyWhite®
    • RoHS and REACH-compliant: yes
  • Applications:
    • Directional
    • Non-directional
    • Downlights
  • Size (mm x mm):15.85 x 15.85
  • Product options: 18-V, 37-V, high-CRI
  • Maximum drive current (A): 0.75 (18-V), 0.375 (37-V)
  • Maximum power (W): 14.8
  • Light output (lm): 700 – 1300
  • LES (mm): 9
  • Viewing angle (degrees): 115
  • Binning: 85 deg. C, ANSI White, 2- and 4-Step EasyWhite®
  • RoHS and REACH-compliant: yes
  • Directional
  • Non-directional
  • Downlights
