Intelligent One-door Two-way Access Control Panel
- Payment Type:
- T/T in Advance
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | T/T in Advance |
|---|
Product Description
Product Description

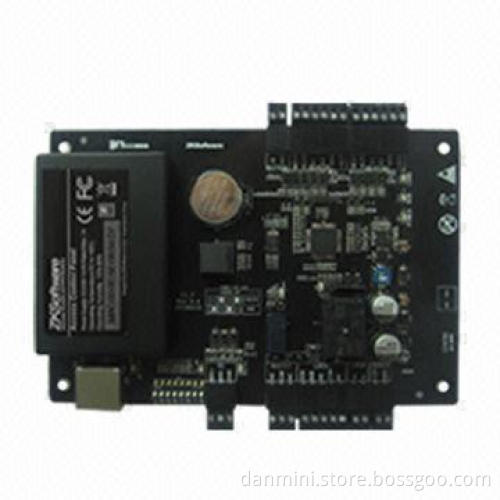

- C3-100's versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The C3-100 can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders
- Multiple hardware protection measure
- Integration with other security systems
- Supports different Wiegand reader
- Input/output ports to control doors
- Variety of communication functions
- B/S structure software
- Normal open after first punch card can be setup
- Realtime monitoring of door status
- Simple access control system configuration
- Interlock function
- Multi-card operation
- Anti-passback
- Duress mode
- SDK available,/ul>
- Specification:,ul>
- Model: C3-100
- CPU: 32 bits MIPS
- RAM: 32M bits
- Flash memory: 256M bits
- User: 30,000
- Event buffer: 100,000
- Power/current: 9.6-14.4V DC, rated 1A maximum
- Reader port: 2ea (26 bits Wiegand, 8 bits burst for pin)
- Communication: RS485, TCP/IP
- Baud rate: 38,400bps (recommended)/9,600, 19,200, 57,600bps (selectable)
- LED indicator: yes, LED indication for communication, power, status and punch card
- Operating humidity: 10 to 80% relative humidity non-condensing
- Dimensions: (W x H) 160 x 106mm (single board), (W x H x D) 345 x 275 x 70mm (with power supply and metal box)
- Certification: CE, FCC
