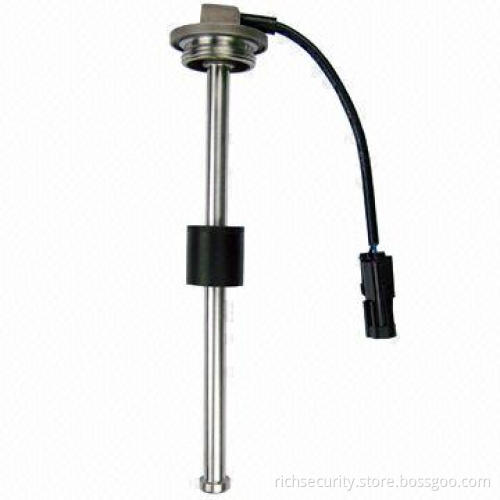

Oil level sensor, high accuracy

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Materials: SUS316 or SUS304 stainless steel

Length range: 100 to 2000mm

Recommended ones are at appendix

Customized requests are accepted

Accuracy solution: 10 to 40mm

Mounting: SAE standard 5 holes and others refer to appendix

Accessories:

Output signal:

5-piece of M5 screws

2mm thick NBR gasket or recommended

Thick FPM gasket if be used on gas tank

Protection rank: IP67

Applying principle of magnetic field to control reed on-off switch

Featuring long using life, anti-vibration and anti-explosion

Rated power: 125mW

Rated current for alarm switch: 500mA

Wire: PVC material (PA corrugated pipe cover is optional)

Connector: brand Delphi and Tyco or customized

Resistance control signal, 0 to 190om and 240 to 33om or customized

Current control signal: 0 to 20 and 4 to 20mA

Voltage control signal: 0.5 to 4.5 or 0 to 5V DC

Resolution range: 10 to 40mm

Operating temperature: -40 to 85°
