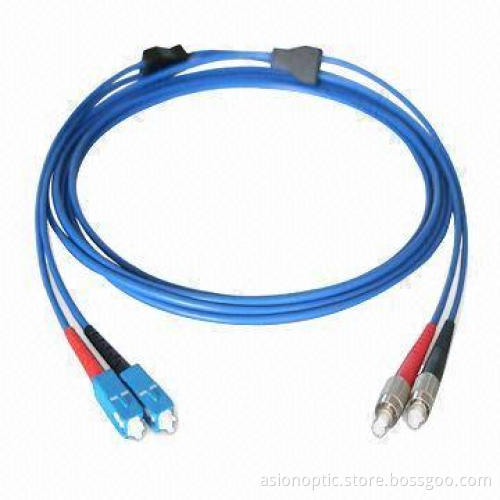

Armored SC-FC Duplex Small Fiber-optic Patch Cord
  • Armored SC-FC Duplex Small Fiber-optic Patch Cord
Armored SC-FC Duplex Small Fiber-optic Patch Cord

Armored SC-FC Duplex Small Fiber-optic Patch Cord

Get Latest Price
Payment Type:
T/T, L/C, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union or PayPal
Product Description
Product Description
  • Features:
    • With PC, UPC and APC polishing
    • ST/SC/FC/LC/DIN/MTRJ/D4/MU/E2000/SMA/ESCON/MTP (MPO) optionalconnectors
    • Multi-mode and single mode are optional
    • Simplex, duplex and multi-strand patch cords are available
  • Specifications:
    • Fiber type: single or multi-mode 50/125, 62.5/125, 10G
    • Single mode fiber: 8/125, 8.3/125, 8.7/125 and9/125¼m
    • Multi-mode fiber: 50/125 and 62.5/125¼m and 10G
    • Cable type: simplex, duplex, multi-strand (F4, 6, 8, 12, 24,48, 72 and 96)
    • Material: advanced ceramic sleeve
    • Optical performance:
      • Insertion loss: d0.3dB
      • Return loss:
        • PC: e45dB
        • UPC: e50dB
        • APC: e60dB
    • Cable length: 0.3, 0.5, 1 and 2m or customized
    • Diameter: 0.9, 2.0 and 3.0mm or customized
    • Working temperature: -25 to 75°C
    • Storage temperature: -45 to 85°C
    • Mechanical testing: repeatability d0.2dB, 1000-time matingcycles
  • Applications:
    • Long distance and local light transmission network
    • Data transmission network, various types of testing andself-control system
    • FTTx project
    • CATV networks
  • With PC, UPC and APC polishing
  • ST/SC/FC/LC/DIN/MTRJ/D4/MU/E2000/SMA/ESCON/MTP (MPO) optionalconnectors
  • Multi-mode and single mode are optional
  • Simplex, duplex and multi-strand patch cords are available
  • Fiber type: single or multi-mode 50/125, 62.5/125, 10G
  • Single mode fiber: 8/125, 8.3/125, 8.7/125 and9/125¼m
  • Multi-mode fiber: 50/125 and 62.5/125¼m and 10G
  • Cable type: simplex, duplex, multi-strand (F4, 6, 8, 12, 24,48, 72 and 96)
  • Material: advanced ceramic sleeve
  • Optical performance:
    • Insertion loss: d0.3dB
    • Return loss:
      • PC: e45dB
      • UPC: e50dB
      • APC: e60dB
  • Cable length: 0.3, 0.5, 1 and 2m or customized
  • Diameter: 0.9, 2.0 and 3.0mm or customized
  • Working temperature: -25 to 75°C
  • Storage temperature: -45 to 85°C
  • Mechanical testing: repeatability d0.2dB, 1000-time matingcycles
  • Insertion loss: d0.3dB
  • Return loss:
    • PC: e45dB
    • UPC: e50dB
    • APC: e60dB
  • PC: e45dB
  • UPC: e50dB
  • APC: e60dB
  • Long distance and local light transmission network
  • Data transmission network, various types of testing andself-control system
  • FTTx project
  • CATV networks
