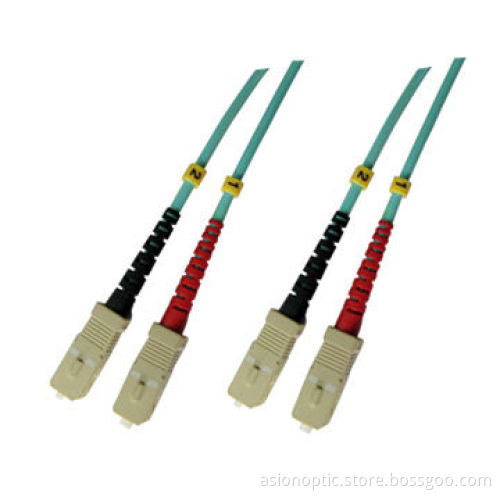

OM4 SC/LC Fiber-optic Patch Cables for Computer Networks

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Features:

Specifications:

Applications:

Technical standards:

With Telcordia GR-326-core and IEC standards

RoHS Directive-compliant

Green production

Nice polished and 100% testing

High stability various environments

Low insertion and high return loss

Optional connector and cable length

Telecommunication networks

Gigabit Ethernet, GPON and EPON

Computer networks

CATV networks

FTTX termination

Modes: SM and MM

Polish: UPC, APC and PC

Insertion losses: ≤0.2, ≤0.3 and ≤0.2dB

Return losses: ≥55, ≥65 and ≥35dB

Interchangeability: ≤0.2dB

Salt spray: ≤0.1dB

Repeatability: ≤0.1dB (1,000 times)

Vibration: ≤0.2dB (550Hz and 1.5mm)

Temperature: ≤0.2dB (-40, +85 sustain 100 hours)

Humidity: ≤0.2dB (+25, +65, 93% RH, 100 hours)

Apex offset: 0 to 50μm

Radius of curvature: 7 to 25mm
