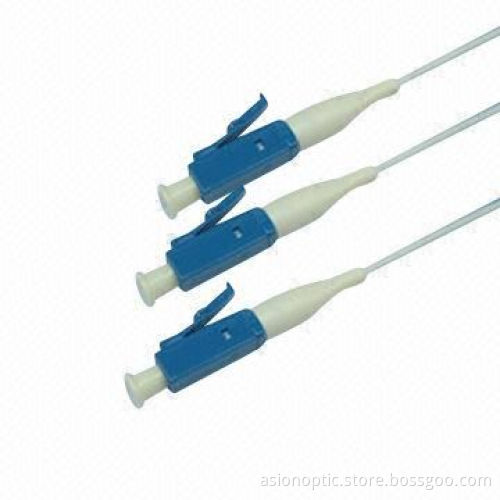

LC Fiber-optic Pigtail, Compliant with JIS C-5973, IEC and Bellcore Standards
  • LC Fiber-optic Pigtail, Compliant with JIS C-5973, IEC and Bellcore Standards
LC Fiber-optic Pigtail, Compliant with JIS C-5973, IEC and Bellcore Standards

LC Fiber-optic Pigtail, Compliant with JIS C-5973, IEC and Bellcore Standards

Get Latest Price
Payment Type:
T/T, L/C, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union or PayPal
Product Description
Product Description
  • Features:
    • Compliant with JIS C-5973, IEC and Bellcore standards
    • Optical performance 100% factory tested
    • 0.9, 2.0, 2.4 and 3.0mm types optional
    • Precision ceramic ferrule with end face geometry per IECproposal
    • 3D interferometer used optional
    • Sheath of cable: PVC and LSZH or others
    • RoHS Directive-compliant
  • Specifications:
    • Insertion loss: no more than 0.2dB (PC, UPC, APC) and no morethan 0.3dB (MM)
    • Return loss: >45dB (PC), >50dB (UPC) and >60dB(APC)
    • Working temperature: -40 to +85°C
    • Storage temperature: -40 to +85°C
  • Applications:
    • Telecommunication networks
    • CATV networks
    • Active device termination
    • Local area networks
    • FTTX
  • Compliant with JIS C-5973, IEC and Bellcore standards
  • Optical performance 100% factory tested
  • 0.9, 2.0, 2.4 and 3.0mm types optional
  • Precision ceramic ferrule with end face geometry per IECproposal
  • 3D interferometer used optional
  • Sheath of cable: PVC and LSZH or others
  • RoHS Directive-compliant
  • Insertion loss: no more than 0.2dB (PC, UPC, APC) and no morethan 0.3dB (MM)
  • Return loss: >45dB (PC), >50dB (UPC) and >60dB(APC)
  • Working temperature: -40 to +85°C
  • Storage temperature: -40 to +85°C
  • Telecommunication networks
  • CATV networks
  • Active device termination
  • Local area networks
  • FTTX
