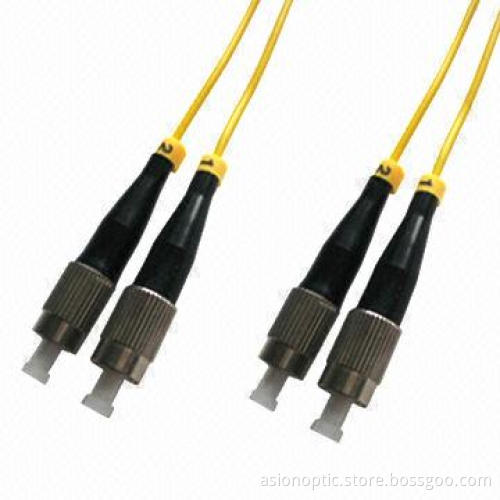

FC to FC Fiber-optic Patch Cords, Single Mode

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Description:

Used in patch cords are designed to FC standards with zirconia ferrules and non-optical disconnecting performance
They are fully compatible with existing FC hardware
In addition to basic testing, some mechanical and environment tests per IEC or Telcordia standards are also performed periodically to guarantee
For standard patch cords, sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements
For premium grade, ferrule geometry is tested on all patch cords to meet these GR-326 requirements
Other than standard single and multiple mode fibers, G655, OM2 and OM3 fibers are also available upon request
Flame-retardant grade cable sheathing options are available
Riser rated cable are provided as standard
LSZH and plenum can be provided upon request

Features:

Push-pull latching mechanism
Non-optical disconnect performance
Zirconia ferrules
Riser, plenum and LSZH cables are available

Applications:

Telecommunication
Computer networks
CATV networks
Active device termination
Instrumentation

Specifications:

Single and multiple mode:
- Fiber diameters: 9/125, 62.5/125 and 50/125μm
- Insertion loss:
  PC: <0.3dB
  APC: <0.2dB
  PC: <0.3dB
- Return loss:
  PC: >45dB
  APC: >60dB
  PC: >25dB
- Insert–pull test (1,000 times): <0.3dB
- Interchange: <0.2dB
- Operating temperature: -40 to 80°C
- Anti-tensile force: 15kgf

Compliant with RoHS Directive
