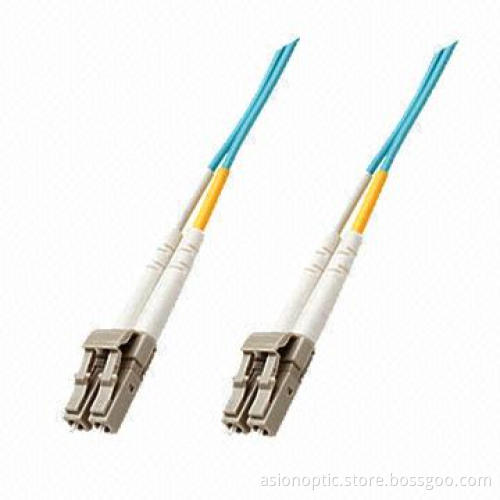

OM4 Fiber-optic Patch Cords, SC/LC, Low Insertion and High Return Loss

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Low insertion and high return loss

Optional connector and cable length

Features:

Applications:

Technical standard:

RoHS Directive-compliant

With Telcordia GR-326-Core and IEC standards

Green production

Nice polished and 100% tested

High stability, various environments

Telecommunication networks

Gigabit Ethernet, GPON and EPON

Computer networks

CATV networks

FTTx termination

Modes: SM and MM

Polish: UPC, APC and PC

Insertion loss: ≤0.2, ≤0.3 and ≤0.2dB

Return loss: ≥55, ≥65 and ≥35dB

Interchangeability: ≤0.2dB

Salt spray: ≤0.1dB

Repeatability: ≤0.1dB (1,000 times)

Vibration: ≤0.2dB (550Hz, 1.5mm)

Temperature: ≤0.2dB (-40 to 85°C sustain for 100 hours)

Humidity: ≤0.2dB (25 to 65°C/93% RH 100 hours)

Apex offset: 0 to 50μm

Radius of curvatures: 7 to 25mm
