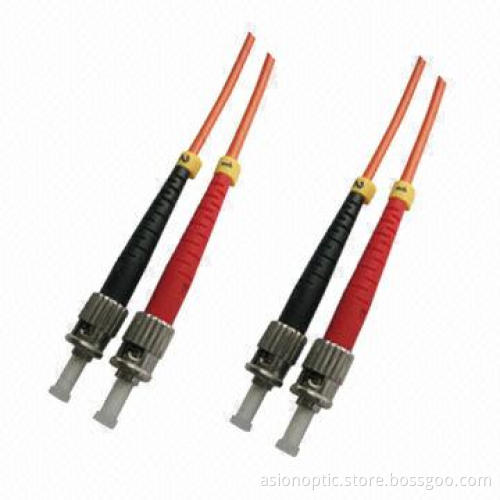

Fiber-optic Patch Cord, Multi-mode Duplex ST-ST

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Descriptions:

Used for our patch cords are designed to SC standards and are fully compatible with existing SC hardware
Two simplex connectors can be configured into a duplex format by adding a duplex clip
In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically to guarantee the good-quality
For standard patch cords, sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements
For premium grade, ferrule geometry is tested on all patch cords to meet these GR-326 requirements
Single- and multi-mode fibers, G655, OM2 and OM3 fibers are available upon requests
Flame retardant-grade cable sheathing options are offered
Riser rated cable will be provided as standard
LSZH and plenum can be provided upon request

Features:

Push-pull latching mechanism
Non-optical disconnect performance
Good-quality zirconia ferrules
Compliant with the RoHS Directive
Riser, plenum, and LSZH cables are available

Applications:

Telecommunication
Computer networks
CATV networks
Active device termination
Instrumentation

Specifications:

Single-/multi-mode
Fiber diameter: 9/125, 62.5/125 and 50/125um
Insertion loss: PC ≤0.3, APC ≤0.2 and PC ≤0.3dB
Return loss: PC ≥45, APC ≥60 and PC ≥25dB
Insert–pull test (1000 times): ≤0.3dB
Interchange: ≤0.2dB
Operation temperature: -40 to 80°C
Anti-tensile force 15kgf
