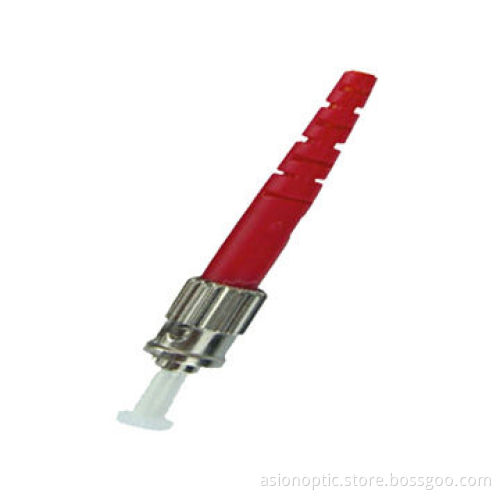

ST Fiber-optic Connector, Single-mode Simplex Type with SC/LC/FC/MTRJ Available
  • ST Fiber-optic Connector, Single-mode Simplex Type with SC/LC/FC/MTRJ Available
ST Fiber-optic Connector, Single-mode Simplex Type with SC/LC/FC/MTRJ Available

ST Fiber-optic Connector, Single-mode Simplex Type with SC/LC/FC/MTRJ Available

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • ST compatible bayonet coupling
    • Metal body and zirconia ferrule
    • Low insertion loss and high return loss
    • Materials meet RoHS requirement
  • Description:
    • ST connectors used in patch cords employ half-twist bayonetlocking mechanism and 2.5mm zirconia ferrules
    • Fully compatible with existing ST type hardware
    • Addition to basic testing, some mechanical and environmentaltests per IEC or Telcordia are also performed periodically toguarantee
  • Applications:
    • Local area networks
    • Fast Ethernet
    • Fiber channel
    • ATM networks
    • Instrumentation
  • Specification:
    • Insertion loss:
      • Single-mode PC: <0.3dB
      • Multi-mode PC: <0.3dB
    • Return loss:
      • Single-mode PC: >45dB
      • Multi-mode PC: >25dB
    • Insert-pull test 1,000 times: <0.3dB
    • Operating temperature: -40 to 75°C
    • Ceramic ferrule specification: 125.5μm
    • Concentricity deviations: <1 and127μm
    • Concentricity deviation: 3μm
    • Suitable fiber: PC (9/125μm), (50/125 to 62.5/125μm)
  • ST compatible bayonet coupling
  • Metal body and zirconia ferrule
  • Low insertion loss and high return loss
  • Materials meet RoHS requirement
  • ST connectors used in patch cords employ half-twist bayonetlocking mechanism and 2.5mm zirconia ferrules
  • Fully compatible with existing ST type hardware
  • Addition to basic testing, some mechanical and environmentaltests per IEC or Telcordia are also performed periodically toguarantee
  • Local area networks
  • Fast Ethernet
  • Fiber channel
  • ATM networks
  • Instrumentation
  • Insertion loss:
    • Single-mode PC: <0.3dB
    • Multi-mode PC: <0.3dB
  • Return loss:
    • Single-mode PC: >45dB
    • Multi-mode PC: >25dB
  • Insert-pull test 1,000 times: <0.3dB
  • Operating temperature: -40 to 75°C
  • Ceramic ferrule specification: 125.5μm
  • Concentricity deviations: <1 and127μm
  • Concentricity deviation: 3μm
  • Suitable fiber: PC (9/125μm), (50/125 to 62.5/125μm)
  • Single-mode PC: <0.3dB
  • Multi-mode PC: <0.3dB
  • Single-mode PC: >45dB
  • Multi-mode PC: >25dB
