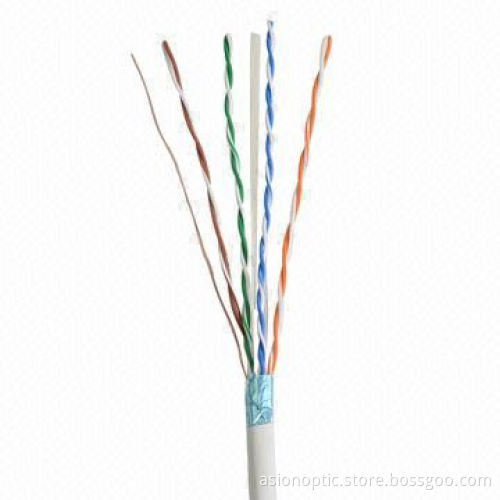

CAT5e/CAT6 FTP Ethernet/LAN Cable, 23AWG, 4-pair Copper/CCA

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Specification:

Reference standards: YD/T1019-2001, ISO/IEC11801,ANSI/TIA/EIA-568B and UL 444

Separator inside the cable realizes the more stabletransmission

Solid copper conductor allows high performance

Fast and reliable connection

Twisted pairs with bright color for easy-to-recognize

Ripcord and foot-mark, convenient-to-use

Smooth jacket for easy-to-pull in tight space

Colors: light gray, dark gray, blue and white or can becustomized

Applications:

LAN cable for internet connections

Computer network cabling projects

Broadband network communications

Digital ISDN network and ATM 155Mbps networks

Ethernet networks

Audio and data transmissions

100Base-T4, 100Base-TX, 100VG-ANYLAN, 155Mbps ATM, 622MbpsATM,1000Base-T and 10GBase-T

Audio and data transmission

4 pairs + F

Rated temperatures: 60 or 75°C

FTP (shielded twisted pairs)

Conductor: solid bare copper, 23AWG, 0.57 ±0.01mm

Cores diameter: 0.9 ±0.02mm

Insulation: HD-PE (high density polyethylene), minimumthickness of 0.18mm

Filler: PE cross

Unrip rope: optional

Drain wire: 26 or 24AWG stranding or solid tinned copper

Shielded: AL-Mylar 100% (minimum) coverage

Jacket: PVC or LSNH, minimum thickness of 0.55mm

Outer diameter: 6.5 ±0.01mm

Color box size: 39 x 39 x 23.5cm, 305m

Fire: CM or CMR

Impedance: 100 ±15%Ω at 1 to 100MHz
