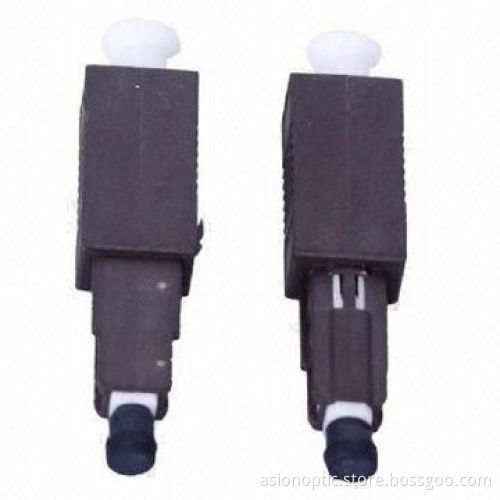

MU Fiber Optic Attenuators with Working wavelength of 1,250 to 1,620nm
  • MU Fiber Optic Attenuators with Working wavelength of 1,250 to 1,620nm
MU Fiber Optic Attenuators with Working wavelength of 1,250 to 1,620nm

MU Fiber Optic Attenuators with Working wavelength of 1,250 to 1,620nm

Get Latest Price
Payment Type:
T/T, L/C, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union or PayPal
Product Description
Product Description
  • Specifications:
    • Working wavelength: 1,250 to 1,620nm
    • Attenuation value: 1 to 10dB (1dB step), 15, 20, 25, 30dB
    • FC/PC, SC/PC, FC/APC, ST/PC, SC/APC, LC/PC are available
    • Attenuation accuracy:
    • 1 to 9dB (±0.5dB)
    • 10 to 20dB (±1.0dB)
    • 21 to 30dB (±1.5dB)
    • Return loss:
    • UPC: ≥50dB
    • APC: ≥65dB
    • Working temperature: -25 to +75 deg. C
    • Storage temperature: -40 to + 85 deg. C
    • Heat stability: 0.3dB/deg. C
    • Maximum endure power: 1W
  • Features:
    • Reduce signal power in fiber optic links by fixed loss
    • Used to control power level of optical signals at outputs oflight sources and electrical-to-optical (E/O) converters
    • Also used to test linearity and dynamic range of photo sensorsand photo detectors
    • Environmentally stable over temperature/humidity/vibration
    • Simple plug-in style enables rapid deployment
  • Applications:
    • Telecommunication network
    • CATV and LAN
    • Date network
    • Passive optical network
    • FTTP
  • Working wavelength: 1,250 to 1,620nm
  • Attenuation value: 1 to 10dB (1dB step), 15, 20, 25, 30dB
  • FC/PC, SC/PC, FC/APC, ST/PC, SC/APC, LC/PC are available
  • Attenuation accuracy:
  • 1 to 9dB (±0.5dB)
  • 10 to 20dB (±1.0dB)
  • 21 to 30dB (±1.5dB)
  • Return loss:
  • UPC: ≥50dB
  • APC: ≥65dB
  • Working temperature: -25 to +75 deg. C
  • Storage temperature: -40 to + 85 deg. C
  • Heat stability: 0.3dB/deg. C
  • Maximum endure power: 1W
  • Reduce signal power in fiber optic links by fixed loss
  • Used to control power level of optical signals at outputs oflight sources and electrical-to-optical (E/O) converters
  • Also used to test linearity and dynamic range of photo sensorsand photo detectors
  • Environmentally stable over temperature/humidity/vibration
  • Simple plug-in style enables rapid deployment
  • Telecommunication network
  • CATV and LAN
  • Date network
  • Passive optical network
  • FTTP
