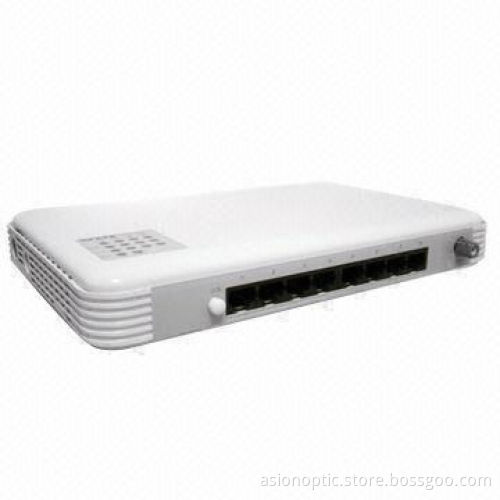

Fast Ethernet Media Converter with 1-port 100Base-FX or 10/100Base-TX Uplink and Managed CPE Switch

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

LAN ports: 10/100 base-TX RJ45 x 8

WAN ports: 100 base-FX or 10/100 base-TX x 1

Standards:

IEEE 802.3 10 base-T
IEEE 802.3u 100 base-TX/FX
IEEE 802.3x flow control
IEEE 802.1q tag VLAN
IEEE 802.1p priority

Features:

Store and forward switching mechanism
Auto-cross over for MDI/MDI-X in TP port
Auto-negotiation in TP port
Full/half duplex mode operation
2K Mac address table
80K bytes memory buffer
Switch feature
IGMP snooping V1/V2
Bandwidth control
Port isolation
Tag VLAN
Q-in-Q VLAN
Supports up to 16 VLAN groups
QoS supports 802.1p and ToS classification
Priority queues: 4 queues

Management:

WEB/SNMP/CLI/Telent interface
HTTP/TFTP firmware update
Storm control
DHCP client
DHCP auto-provision
Text based configuration
SFF-8472 (digital diagnostic interface for SFP)
Power down trap
LED: power, port link/act and status
LED on/off control button

Power adapter:

Input: 100 to 240V AC
Frequency range: 50 to 60Hz
Output: 12V DC/1.5A

Power consumption:

Side: 9.3W (AC)
Side: 6.61W (DC)

Operating temperature: 0 to 50°C

Storage temperature: -20 to 60°C

Humidity: 5 to 90% RH, non-condensing

Dimensions: 228 x 148 x 33mm

Shipping weight: 1.6kg

Main unit with cable tray:

Size: (W) 228 x (D) 191.5 x (H) 46mm

IEEE 802.3 10 base-T

IEEE 802.3u 100 base-TX/FX

IEEE 802.3x flow control

IEEE 802.1q tag VLAN

IEEE 802.1p priority

Store and forward switching mechanism

Auto-cross over for MDI/MDI-X in TP port

Auto-negotiation in TP port

Full/half duplex mode operation

2K Mac address table

80K bytes memory buffer

Switch feature

IGMP snooping V1/V2

Bandwidth control

Port isolation

Tag VLAN

Q-in-Q VLAN

Supports up to 16 VLAN groups

QoS supports 802.1p and ToS classification

Priority queues: 4 queues

WEB/SNMP/CLI/Telent interface

HTTP/TFTP firmware update

Storm control

DHCP client

DHCP auto-provision

Text based configuration

SFF-8472 (digital diagnostic interface for SFP)

Power down trap

LED: power, port link/act and status

LED on/off control button

Input: 100 to 240V AC

Frequency range: 50 to 60Hz

Output: 12V DC/1.5A

Side: 9.3W (AC)

Side: 6.61W (DC)

Size: (W) 228 x (D) 191.5 x (H) 46mm
