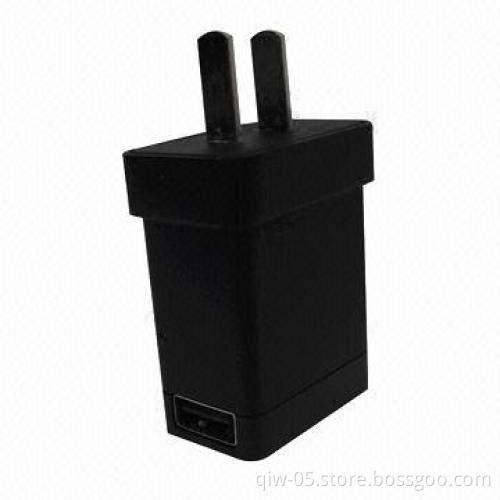

Mobile phone charger, RoHS Directive-compliant
  • Mobile phone charger, RoHS Directive-compliant
Mobile phone charger, RoHS Directive-compliant

Mobile phone charger, RoHS Directive-compliant

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Features:
    • Switching adapter and fixed frequency control circuit
    • Applies to mobile phones, PDA, digital cameras and TEX-controlPOS
    • Input voltage: 100 to 240V AC at 50/60Hz (0.2A)
    • CMMI certified
    • Meets all related standards
    • RoHS Directive-compliant
    • Experienced staff producing AC/DC adapter with interchangeableplugs for all countries
  • Specifications:
    • Output voltage: 5V DC
    • Voltage range: 4.2 to 12V DC
    • Current range: 0.5 to 2A
    • Rated power: 2.5 to 24W
    • Ripple and noise: 100 to 200mV (maximum)
    • Voltage range: ±5%
    • Input voltage range: 100 to 240V (90 to 264V)
    • Frequency range: 50 to 60Hz (47 to 63Hz)
    • Efficiency (type): 69.53% (minimum)
  • Protections:
    • Overcurrent
    • Short-circuit
    • Over-temperature
    • Overvoltage
  • Environment working temperature: -5 to 45°C
  • Working humidity: 20 to 80% RH
  • Storage humidity: 5 to 95% RH
  • Switching adapter and fixed frequency control circuit
  • Applies to mobile phones, PDA, digital cameras and TEX-controlPOS
  • Input voltage: 100 to 240V AC at 50/60Hz (0.2A)
  • CMMI certified
  • Meets all related standards
  • RoHS Directive-compliant
  • Experienced staff producing AC/DC adapter with interchangeableplugs for all countries
  • Output voltage: 5V DC
  • Voltage range: 4.2 to 12V DC
  • Current range: 0.5 to 2A
  • Rated power: 2.5 to 24W
  • Ripple and noise: 100 to 200mV (maximum)
  • Voltage range: ±5%
  • Input voltage range: 100 to 240V (90 to 264V)
  • Frequency range: 50 to 60Hz (47 to 63Hz)
  • Efficiency (type): 69.53% (minimum)
  • Overcurrent
  • Short-circuit
  • Over-temperature
  • Overvoltage
  • Safety and burn-in safety standards: GB 4943/EN 60950-1/UL60950
  • Burn-in 80 to 100% load, 40 ±5°C, 4 hours
  • Life average/expectancy: 3 years
