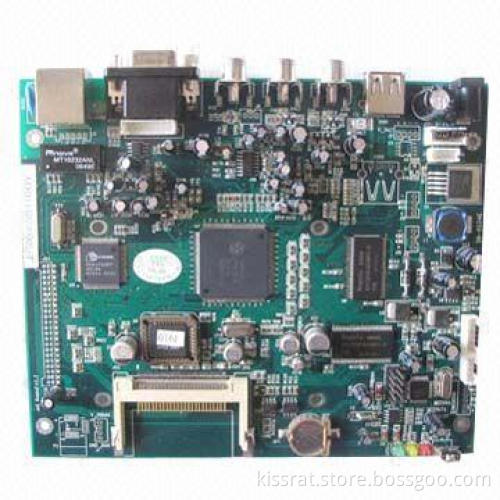

Internet Multimedia Driving Board with VGA and CVBS Video Output

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Firmware: upgradeable and customizable

Playback formats:

Video: MPEG-1, MPEG-2, MPEG-4 (.AVI 720 x 576 video)

Audio: MP3

Picture: JPG

Card reader: CF

Hard disk: 2.5-inch hard disk

Output interface: VGA (640 x 480) CVBS, stereo audio

USB host: USB 2.0

LAN port: Ethernet 10/100MBaseT

DC in: 12V (1A)

DC out: 12V (timer control)

LED indicators: LAN LED, runs LED and power LED

Features:

Content on demand (playlist support)
Scheduled content download and playback
Local and remote access for content update
Integrated HDD or CF card reader
VGA and CVBS video output
Auto IP and manual IP
FTP file servo supported
PCB size: 165 x 135 x 20mm
PCB jack:
- RJ45 for Ethernet
- Audio and video signal (extender header and RCA)
- VGA port (DB15)
- Power input (extender header and jack)
- CF card reader slot
- IR receiver (on board)
- Power output (extender header)
- 2.5-inch IDE jack

The digital media adapter is connected to your local network using a standard Ethernet, enabling you to access and broadcast content from any computer on your network

Combined with its ability to access a remote server over the internet, new content can be downloaded over night and stored on the local drive

Using the playlist function of LAN-DMP, this system can then be used for targeted advertisement with up to date content, all maintained from a central content server generic case available on request

Both hardware and software can be customized and shaped according to needs

Content on demand (playlist support)

Scheduled content download and playback

Local and remote access for content update

Integrated HDD or CF card reader

VGA and CVBS video output

Auto IP and manual IP

FTP file servo supported

PCB size: 165 x 135 x 20mm

PCB jack:
