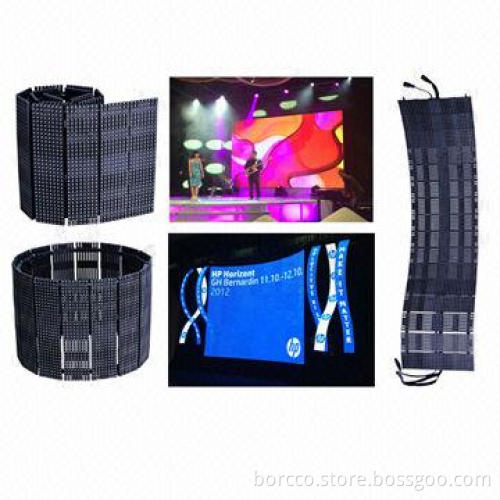

Helix P9.375 outdoor flexible curtain screen

Helix P9.375mm are mostly used for outdoor mobile screen due to its high brightness and ability to transform freely into different information

These panels are also great for stage event stage

Basic parameters:

Module no.: BH-Helix 9.375 - 32128A
Brightness: >2,600nits
Pixel pitch: 9.375mm
Dot matrix per panel: 32 x 128
Dot pixels per panel: 4,096
Dimension s: (W x L) 300 x 1,200mm
Panel area: 0.36m²
Aspect ratio: 1/4
Panel weight: 3.6kg
Transparency: 15%
Pixel type and configuration: SMD 3528
Protection level: IP65
Dot pixels per m²: 11,377
Operating temperature range: -30 to 60°C
Viewing angle: 110/110°±5°(Vertical/Horizontal)
Color temperature: 6,500K
Contrast ratio: 1,000:1
Panel material: plastic
Drive mode: 1/4 scan
Minimum viewing distance: 7m
Color depth: 16-bit
Greyscale (liner) levels: 64k levels per color
Refresh rate: 1,920Hz
System type: computer synchronous
Computer video frame rate: 50/60Hz
Power consumption: maximum 600W per square meter
Input voltage: AC 90 - 260V
Input power frequency: 50 - 60Hz
Lifespan (50% brightness): >80,000 hours
Mounting system: rear hanging

Features:

Shutter structure, can be caved and folded up to make the screen you need
With hanging bar and stage lock, easy and fast to install
Connect with control box and computer, easy to operate and maintenance
3,000W power supply and receiving card centralized control, one control box can load 8pcs panel
With built-in PWM drive IC, the refresh rate and grey scale levels ultra-high
Unique design with high transparent, good for stage background design of show, concert, club, bar and more

Download more information about this product

Module no.: BH-Helix 9.375 - 32128A

Brightness: >2,600nits

Pixel pitch: 9.375mm

Dot matrix per panel: 32 x 128

Dot pixels per panel: 4,096

Dimension s: (W x L) 300 x 1,200mm

Panel area: 0.36m²

Aspect ratio: 1/4

Panel weight: 3.6kg

Transparency: 15%

Pixel type and configuration: SMD 3528

Protection level: IP65

Dot pixels per m²: 11,377

Operating temperature range: -30 to 60°C

Viewing angle: 110/110°±5°(Vertical/Horizontal)

Color temperature: 6,500K

Contrast ratio: 1,000:1

Panel material: plastic

Drive mode: 1/4 scan

Minimum viewing distance: 7m

Color depth: 16-bit

Greyscale (liner) levels: 64k levels per color

Refresh rate: 1,920Hz

System type: computer synchronous

Computer video frame rate: 50/60Hz

Power consumption: maximum 600W per square meter

Input voltage: AC 90 - 260V

Input power frequency: 50 - 60Hz

Lifespan (50% brightness): >80,000 hours

Mounting system: rear hanging

Shutter structure, can be caved and folded up to make the screen you need

With hanging bar and stage lock, easy and fast to install

Connect with control box and computer, easy to operate and maintenance

3,000W power supply and receiving card centralized control, one control box can load 8pcs panel

With built-in PWM drive IC, the refresh rate and grey scale levels ultra-high

Unique design with high transparent, good for stage background design of show, concert, club, bar and more
