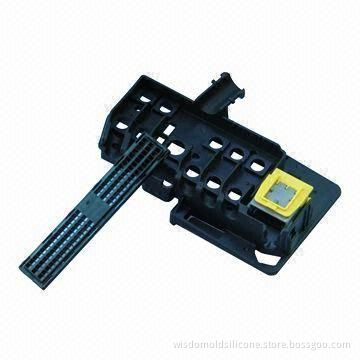

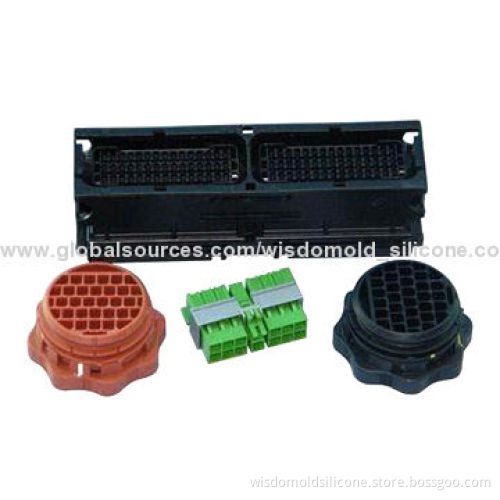

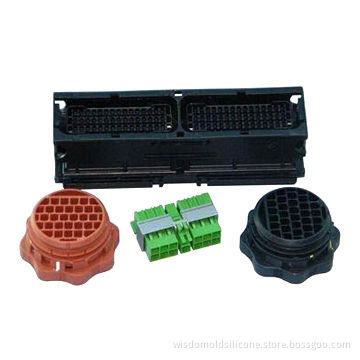

Connector Terminals for Automobiles, with 12A Current

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Wire protector terminal block

Prototype design and production assembly

Reputable design software used for all design work

Fast automatic remold design

Mold design with team of experienced specialists

Materials:

Electrical:

Mechanical:

Pitch: 5.0/10.0mm

Contacts: 2 to 24P

Mold materials: P20, P20H, H-13, O-1, S-7, 420, 420H, D2, NAK80, 1.2311, 1.2711, 1.2344, 1.2510, 1.2083, 1.2316 and 1.2379

Cavity: multiple

Runner: cold/hot

Plastic materials: PP, HDPE, PA and PC

Mold lifespan: more than 400,000 shots

Screws: M2.6 steel zinc-plated

Wire guard: brass, Ni-plated

Pin header: brass, tin-plated

Housing: PA66 and UL94V-0

Rated voltage: 300V

Rated current: 10A

Contact resistance: 20mΩ

Insulation resistance: 5000MΩ/1000V

Withstanding voltage: 1600V AC/1 minimum

Wire range: 14 to 26AWG

Temperature range: -30 to +105°C

Maximum soldering: +250, for 5 seconds

Torque: 3.5kgf.c

Certification: UL
