Auto car data logger, GPS tracking software

Auto car data logger, GPS tracking software

Get Latest Price

Payment Type:: L/C, T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T or Western Union

Product Description

Specifications:

Enclosure dimension: 93 x 62 x 25mm
Weight: 200g
DC tolerance voltage: 9 to 35V
GSM module: 850/900/1800/1900MHz
GPS module: SIRF III
Protocol: NMEA0183
Number of channels: 20 channel simultaneous operation
Current (GPRS online): 60mA
Current (GPRS transmission): 80mA
Sleeping mode: 40mA
Accuracy horizontal: Altitude: Velocity: 0.06m/sec
Hot start: Warm start: Cold start: Backup battery: 800mAh
Communication: GPRS/SMS/RS232
Operating temperature: -20 to +55°C
Storage temperature: -40 to +65°C
Customized requirements are accepted

General description:

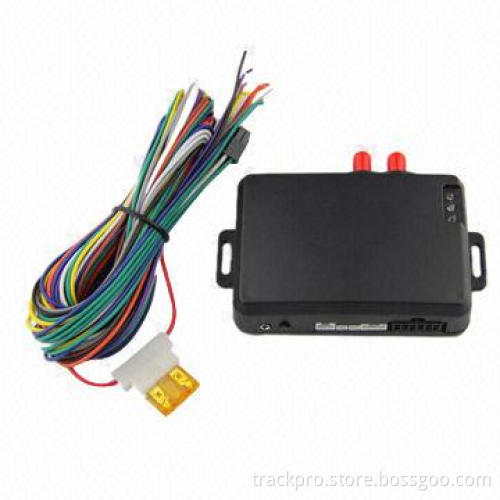

TR20 is small but powerful GPS/GPRS/SMS vehicle tracking devices, supporting both TCP and UDP socket communication, with 4 digital inputs, 8 digital outputs, optional temperature
Integrating car alarm functions together, you can monitor the vehicle location and control the car alarm remotely
It is designed for almost any vehicle
With the compact and small size (cigarette box size), it is easy to hide and install inside the vehicle

The representative functions of TR20:

Fixed time/distance report
Intelligent report
Geo-fence
Power-cut alarming
Direction change report
Built in memory

Standard built-in 2m memory flash to makes it available that when there is no GPRS, the unit will store reports into memory (more than 3,000pcs reports), once GPRS is available again, it will forward to server immediately

Memory can be expanded as customers request

Built in backup battery

Standard backup 800mAh battery for emergency use

Once car power is cut

Enclosure dimension: 93 x 62 x 25mm

Weight: 200g

DC tolerance voltage: 9 to 35V

GSM module: 850/900/1800/1900MHz

GPS module: SIRF III

Protocol: NMEA0183

Number of channels: 20 channel simultaneous operation

Current (GPRS online): 60mA

Current (GPRS transmission): 80mA

Sleeping mode: 40mA

Accuracy horizontal: Altitude: Velocity: 0.06m/sec

Hot start: Warm start: Cold start: Backup battery: 800mAh

Communication: GPRS/SMS/RS232

Operating temperature: -20 to +55°C

Storage temperature: -40 to +65°C

Customized requirements are accepted

TR20 is small but powerful GPS/GPRS/SMS vehicle tracking devices, supporting both TCP and UDP socket communication, with 4 digital inputs, 8 digital outputs, optional temperature

Integrating car alarm functions together, you can monitor the vehicle location and control the car alarm remotely

It is designed for almost any vehicle

With the compact and small size (cigarette box size), it is easy to hide and install inside the vehicle

Fixed time/distance report

Intelligent report

Geo-fence

Power-cut alarming

Direction change report

Built in memory
