Portable Multiparameter Vet Use Patient Monitor Medical Equipment with CE Veterinary for Dog and Cat

Portable Multiparameter Vet Use Patient Monitor Medical Equipment with CE Veterinary for Dog and Cat

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

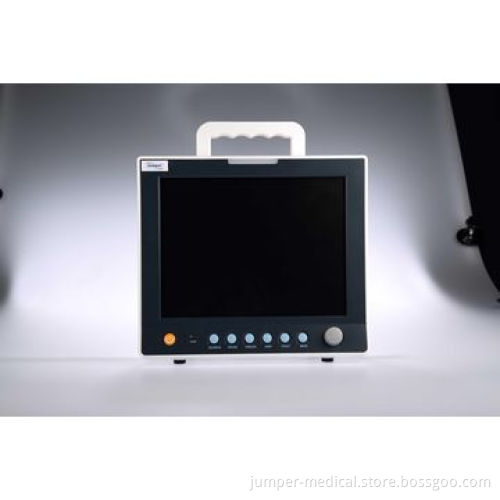

12-inch color TFT display, up to 12 waveforms

One level menu and easy to use

Parameters includes ECG/RESP/SpO2/NIBP/temperature/pulse rate/IBP (optional)

Maximum 720H graphic and tabular trends of all parameters

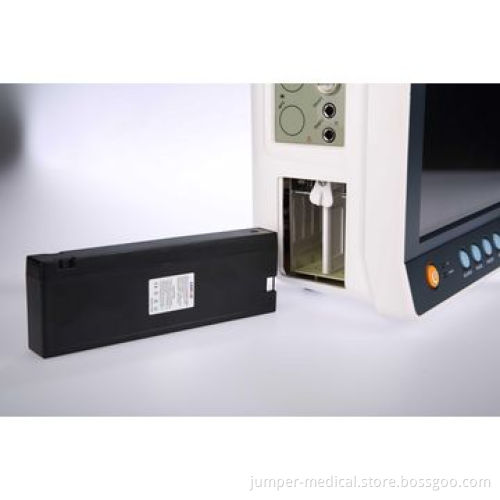

Built-in recorder, battery

Suitable for adult/pediatric/neonatal patient

Arrhythmia analysis, ST calculation and pace analysis

Anti-ESU/-defibrillator

Standard network interface, can connect to central monitor system

Optional: recorder, dual IBP, CO2 and ICG

Specification:

ECG
- Lead mode: I/II/III/AVR/AVL/AVF/V
- Gain: X0.25/X0.5/X1/X2
- Heart rate:
  - Adult: 15 to 300bpm
  - Neonatal: 15 to 350bpm
- Resolution: 1bpm
- Accuracy: ±1%
- ST measurement range: -2.0, ±2.0mV
- Accuracy: ±10%
- Pacemaker: supported
- Sweep speed: 12.5/25/50mm/second
Bandwidth:
- Diagnostic: 0.05 to 130Hz
- Monitor: 0.5 to 40Hz
- Surgery: 1 to 20Hz
SPO₂
- Measure range: 0 to 100%
- Resolution: 1%
- Accuracy: 2% (70 to 100%)
- Pulse rate: 20 to 250bpm
- Resolution: 1bpm
- Accuracy: ±3bpm
RESP:
- Measure range: 0 to 150brpm
- Resolution: 1brpm
- Accuracy: ±2%
Temperature:
- Measure range: 0 t o50°C
- Accuracy: ±0.1°C
NIBP:
- Work mode: manual, automatic and continuous
- Unit: mmHg and kPa
Adult:
- SYS: 40 to 280mmHg
- DIA: 10 to 225mmHg
- MEAN: 20 to 240mmHg
Pediatric:
- SYS: 40 to 220mmHg
- DIA: 10 to 160mmHg
- MEAN: 20 to 170mmHg
Neonatal:
- SYS: 40 to 135mmHg
- DIA: 10 to 100mmHg
- MEAN: 20 to 110mmHg
Resolution: 1mmHg
- Accuracy: ±5mmHg

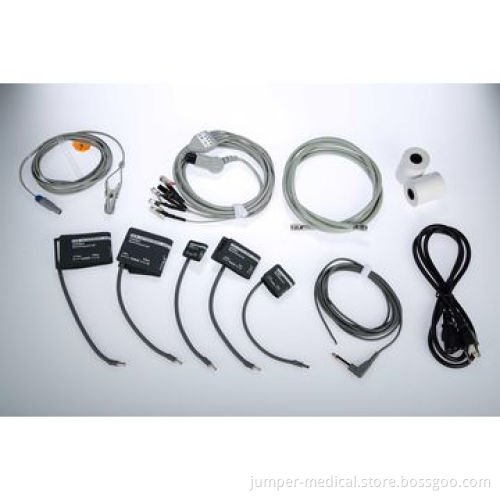

Standard packing list:

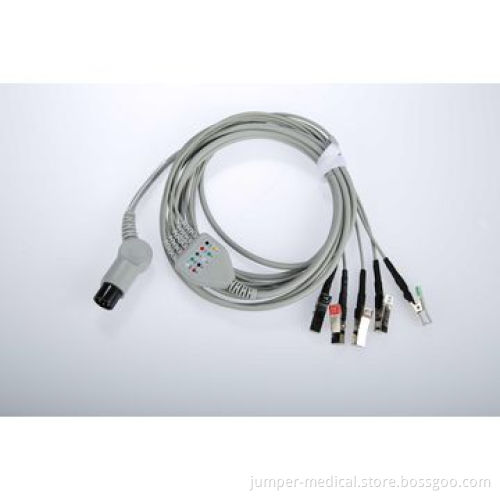

5-lead ECG cable

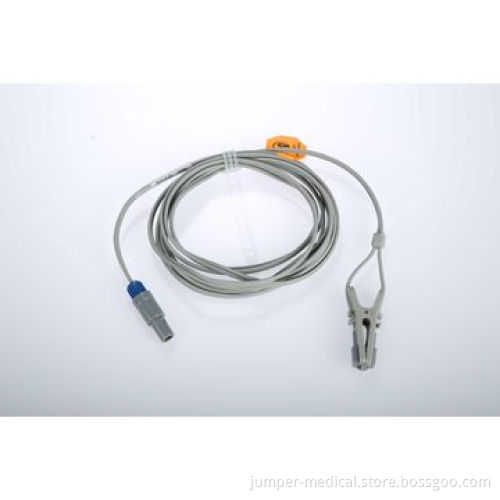

Adult finger Spo2 sensor
NIBP extension tube

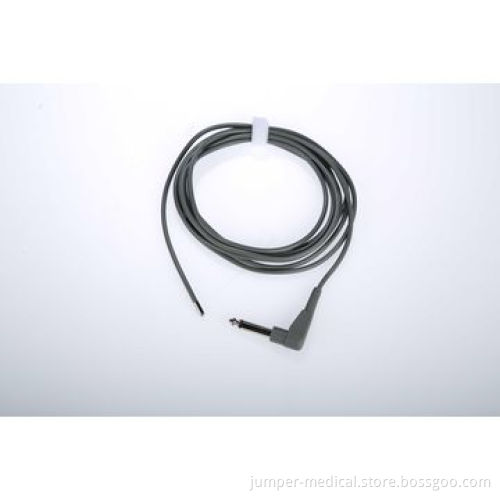

TEMP sensor
Power cord
ECG electrodes

Operating instruction:

Selectable accessory: (option of one-time use)
Child finger SPO²

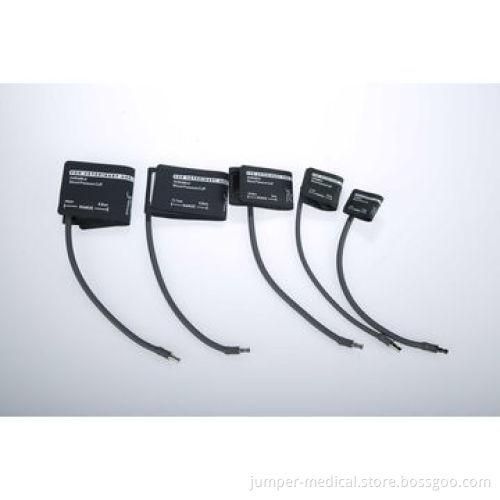

Child NIBP cuff
Neonate NIBP cuff
HS code: 90181930

Packaging:

Net weight: <5kg
Gross weight: <8kg
Dimensions: 320x160x270mm

ECG

Lead mode: I/II/III/AVR/AVL/AVF/V
Gain: X0.25/X0.5/X1/X2
Heart rate:
- Adult: 15 to 300bpm
- Neonatal: 15 to 350bpm
Resolution: 1bpm
Accuracy: ±1%
ST measurement range: -2.0, ±2.0mV
Accuracy: ±10%
Pacemaker: supported
Sweep speed: 12.5/25/50mm/second

Bandwidth:

Diagnostic: 0.05 to 130Hz
Monitor: 0.5 to 40Hz
Surgery: 1 to 20Hz

SPO₂

Measure range: 0 to 100%
Resolution: 1%
Accuracy: 2% (70 to 100%)
Pulse rate: 20 to 250bpm
Resolution: 1bpm
Accuracy: ±3bpm

RESP:

Measure range: 0 to 150brpm
Resolution: 1brpm
Accuracy: ±2%

Temperature:

Measure range: 0 t o50°C
Accuracy: ±0.1°C

NIBP:

Work mode: manual, automatic and continuous
Unit: mmHg and kPa

Adult:

SYS: 40 to 280mmHg
DIA: 10 to 225mmHg
MEAN: 20 to 240mmHg

Pediatric:

SYS: 40 to 220mmHg
DIA: 10 to 160mmHg
MEAN: 20 to 170mmHg

Neonatal:

SYS: 40 to 135mmHg
DIA: 10 to 100mmHg
MEAN: 20 to 110mmHg

Resolution: 1mmHg

Accuracy: ±5mmHg

Lead mode: I/II/III/AVR/AVL/AVF/V

Gain: X0.25/X0.5/X1/X2

Heart rate:

Adult: 15 to 300bpm
Neonatal: 15 to 350bpm

Resolution: 1bpm

Accuracy: ±1%

ST measurement range: -2.0, ±2.0mV

Accuracy: ±10%

Pacemaker: supported

Sweep speed: 12.5/25/50mm/second

Adult: 15 to 300bpm

Neonatal: 15 to 350bpm

Diagnostic: 0.05 to 130Hz

Monitor: 0.5 to 40Hz

Surgery: 1 to 20Hz

Measure range: 0 to 100%

Resolution: 1%

Accuracy: 2% (70 to 100%)

Pulse rate: 20 to 250bpm

Resolution: 1bpm

Accuracy: ±3bpm

Measure range: 0 to 150brpm

Resolution: 1brpm

Accuracy: ±2%

Measure range: 0 t o50°C

Accuracy: ±0.1°C

Work mode: manual, automatic and continuous

Unit: mmHg and kPa

SYS: 40 to 280mmHg

DIA: 10 to 225mmHg

MEAN: 20 to 240mmHg

SYS: 40 to 220mmHg

DIA: 10 to 160mmHg

MEAN: 20 to 170mmHg

SYS: 40 to 135mmHg

DIA: 10 to 100mmHg

MEAN: 20 to 110mmHg

Accuracy: ±5mmHg

5-lead ECG cable

Adult finger Spo2 sensor

NIBP extension tube

TEMP sensor

Power cord

ECG electrodes

Selectable accessory: (option of one-time use)

Child finger SPO²

Child NIBP cuff

Neonate NIBP cuff

HS code: 90181930

Net weight: <5kg

Gross weight: <8kg

Dimensions: 320x160x270mm
