Multiple Parameters ECG Monitor, CE Marked 12-inch SPO2, ECG, NIBP, TEMP, PR & RESPNew

Multiple Parameters ECG Monitor, CE Marked 12-inch SPO2, ECG, NIBP, TEMP, PR & RESPNew

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

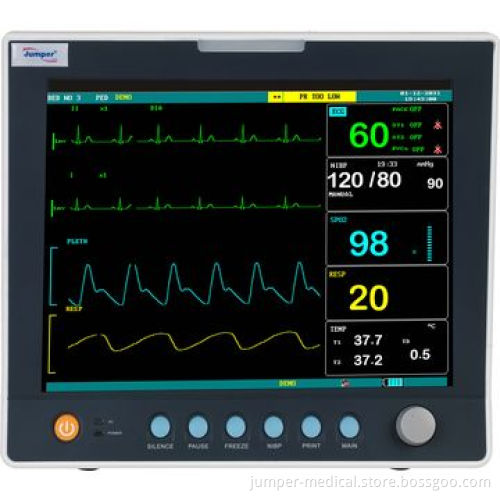

12-inch color TFT display, up to 12 waveforms

One level menu and easy to use

Parameters includes ECG/RESP/SpO2/NIBP/temperature/pulse rate/IBP (optional)

Maximum 720H graphic and tabular trends of all parameters

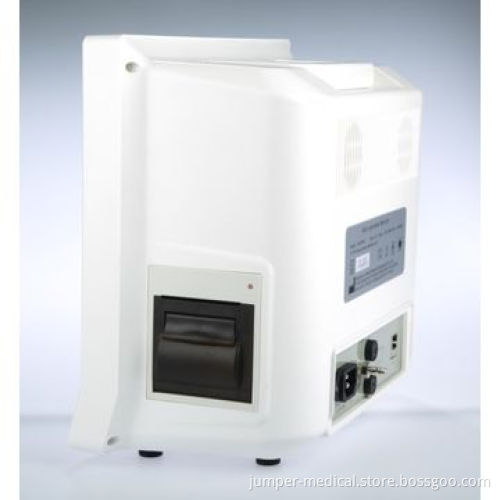

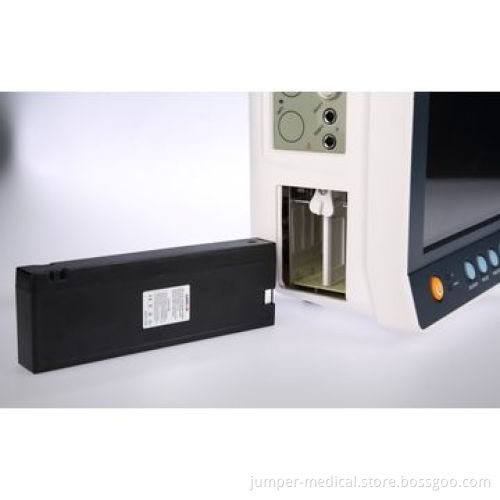

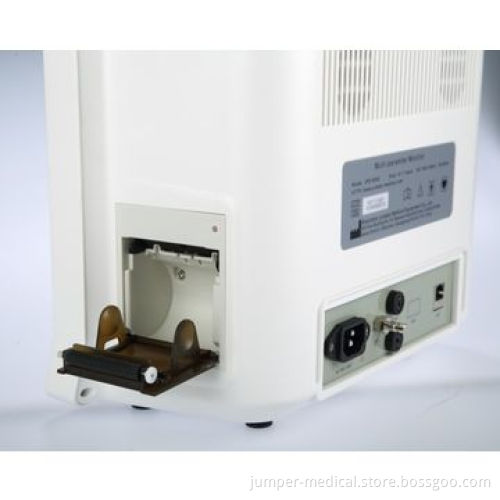

Built-in recorder and battery

Suitable for adult/pediatric/neonatal patient

Arrhythmia analysis, ST calculation and pace analysis

Anti-ESU/-defibrillator

Standard network interface, can connect to central monitor system

Optional: recorder, dual IBP, CO2 and ICG

Specification:

ECG
- Lead mode: I/II/III/AVR/AVL/AVF/V
- Gain: X0.25/X0.5/X1/X2
- Heart rate:
  - Adult: 15 to 300bpm
  - Neonatal: 15 to 350bpm
- Resolution: 1bpm
- Accuracy: ±1%
- ST measurement range: -2.0, ±2.0mV
- Accuracy: ±10%
- Pacemaker: yes
- Sweep speed: 12.5/25/50mm/second
Bandwidth:
- Diagnostic: 0.05 to 130Hz
- Monitor: 0.5 to 40Hz
- Surgery: 1 to 20Hz
SPO₂
- Measure range: 0 to 100%
- Resolution: 1%
- Accuracy: 2% (70 to 100%)
- Pulse rate: 20 to 250bpm
- Resolution: 1bpm
- Accuracy: ±3bpm
RESP:
- Measure range: 0 to 150brpm
- Resolution: 1brpm
- Accuracy: ±2%
Temperature:
- Measure range: 0 t o50°C
- Accuracy: ±0.1°C
NIBP:
- Work mode: manual, automatic and continuous
- Unit: mmHg and kPa
- Measure range:
Adult:
- SYS: 40 to 280mmHg
- DIA: 10 to 225mmHg
- MEAN: 20 to 240mmHg
Pediatric:
- SYS: 40 to 220mmHg
- DIA: 10 to 160mmHg
- MEAN: 20 to 170mmHg
Neonatal:
- SYS: 40 to 135mmHg
- DIA: 10 to 100mmHg
- MEAN: 20 to 110mmHg
Resolution: 1mmHg
- Accuracy: ±5mmHg

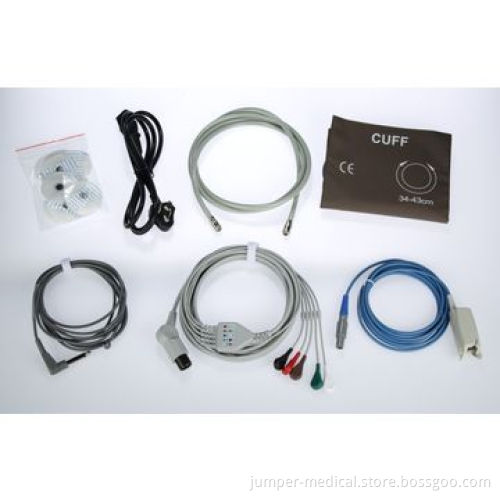

Standard packing list:

5-lead ECG cable
Adult finger Spo2 sensor
NIBP extension tube
TEMP sensor
Power cord
ECG electrodes

Operating instruction:

Selectable accessory: (option of one-time use)
Child finger SPO²
Child NIBP cuff
Neonate NIBP cuff
HS code: 90181930

Packaging:

Net weight: <5kg
Gross weight: <8kg
Dimension: 320x160x270mm

ECG

Lead mode: I/II/III/AVR/AVL/AVF/V
Gain: X0.25/X0.5/X1/X2
Heart rate:
- Adult: 15 to 300bpm
- Neonatal: 15 to 350bpm
Resolution: 1bpm
Accuracy: ±1%
ST measurement range: -2.0, ±2.0mV
Accuracy: ±10%
Pacemaker: yes
Sweep speed: 12.5/25/50mm/second

Bandwidth:

Diagnostic: 0.05 to 130Hz
Monitor: 0.5 to 40Hz
Surgery: 1 to 20Hz

SPO₂

Measure range: 0 to 100%
Resolution: 1%
Accuracy: 2% (70 to 100%)
Pulse rate: 20 to 250bpm
Resolution: 1bpm
Accuracy: ±3bpm

RESP:

Measure range: 0 to 150brpm
Resolution: 1brpm
Accuracy: ±2%

Temperature:

Measure range: 0 t o50°C
Accuracy: ±0.1°C

NIBP:

Work mode: manual, automatic and continuous
Unit: mmHg and kPa
Measure range:

Adult:

SYS: 40 to 280mmHg
DIA: 10 to 225mmHg
MEAN: 20 to 240mmHg

Pediatric:

SYS: 40 to 220mmHg
DIA: 10 to 160mmHg
MEAN: 20 to 170mmHg

Neonatal:

SYS: 40 to 135mmHg
DIA: 10 to 100mmHg
MEAN: 20 to 110mmHg

Resolution: 1mmHg

Accuracy: ±5mmHg

Lead mode: I/II/III/AVR/AVL/AVF/V

Gain: X0.25/X0.5/X1/X2

Heart rate:

Adult: 15 to 300bpm
Neonatal: 15 to 350bpm

Resolution: 1bpm

Accuracy: ±1%

ST measurement range: -2.0, ±2.0mV

Accuracy: ±10%

Pacemaker: yes

Sweep speed: 12.5/25/50mm/second

Adult: 15 to 300bpm

Neonatal: 15 to 350bpm

Diagnostic: 0.05 to 130Hz

Monitor: 0.5 to 40Hz

Surgery: 1 to 20Hz

Measure range: 0 to 100%

Resolution: 1%

Accuracy: 2% (70 to 100%)

Pulse rate: 20 to 250bpm

Resolution: 1bpm

Accuracy: ±3bpm

Measure range: 0 to 150brpm

Resolution: 1brpm

Accuracy: ±2%

Measure range: 0 t o50°C

Accuracy: ±0.1°C

Work mode: manual, automatic and continuous

Unit: mmHg and kPa

Measure range:

SYS: 40 to 280mmHg

DIA: 10 to 225mmHg

MEAN: 20 to 240mmHg

SYS: 40 to 220mmHg

DIA: 10 to 160mmHg

MEAN: 20 to 170mmHg

SYS: 40 to 135mmHg

DIA: 10 to 100mmHg

MEAN: 20 to 110mmHg

Accuracy: ±5mmHg

5-lead ECG cable

Adult finger Spo2 sensor

NIBP extension tube

TEMP sensor

Power cord

ECG electrodes

Selectable accessory: (option of one-time use)

Child finger SPO²

Child NIBP cuff

Neonate NIBP cuff

HS code: 90181930

Net weight: <5kg

Gross weight: <8kg

Dimension: 320x160x270mm
