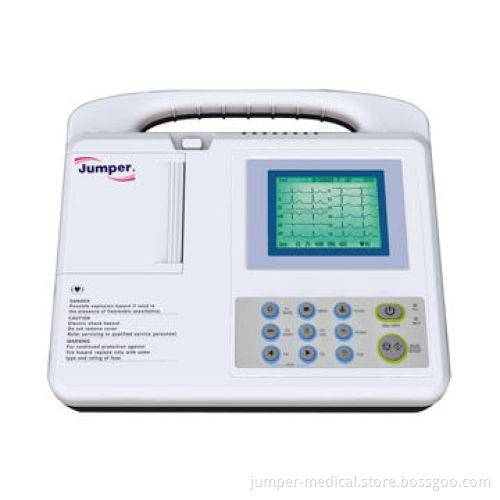

3-channel Digital ECG Machine with Measuring and Interpretation Report
  • 3-channel Digital ECG Machine with Measuring and Interpretation Report
  • 3-channel Digital ECG Machine with Measuring and Interpretation Report
3-channel Digital ECG Machine with Measuring and Interpretation Report
3-channel Digital ECG Machine with Measuring and Interpretation Report

3-channel Digital ECG Machine with Measuring and Interpretation Report

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • 3-channel digital ECG machine with interpretation
    • Simultaneous acquisition of 12-lead ECG signal
    • Manual/auto/arrhythmia analysis modes
    • Real-time ECG and 20 patients cases
    • Multiple printing modes
    • 80mm 3-inch recording with rhythm lead
    • 320 x 240 graphic and 3.8-inch LCD
    • High resolution thermal printing system
    • High resolution digital filter
    • Built-in USB or RS232, optional PC-ECG software
    • AC/DC power, built-in rechargeable NiMH battery
    • Lightweight with handle, convenient for use
  • Specifications:
    • Safety standards: IEC60601-1 class I and type CF
    • Lead: standard 12 leads, lead changes automatically
    • Resolution: 12 bits/1,000Hz
    • Operation modes: manual/auto/analysis modes
    • Filters: AC and EMG
    • Drift filter: anti-drift system
    • Input circuits: floating, protection against defibrillator effect
    • CMRR: greater than 100dB (with filter)
    • Input circuit current: <0.1μA
    • Input impedance: ≥50ΜΩ
    • Calibrating voltage: 1mV±3%
    • Frequency responses: 0.05 to 160Hz (IEC)
    • Time constant: >3.2 seconds
    • Noise levels: ≤15Vp-p
    • Threshold: ≤20μV
    • Sensitivities: auto 2.5, 5, 10, 20 and 0mm/mV
    • Recording system: high resolution thermal printer
    • Paper speeds: 25, 50mm/s±3%
    • Recording papers: 80 x 20m, roll/fold paper
    • Power supply:
      • AC: 220/110V, 50/60Hz
      • DC: 14.4V rechargeable Li-ion battery (2,200mAh)
    • LCD display: 320x240 graphic and 3.8-inch LCD
    • Dimensions: 285 x 265 x 72mm
    • Weight: 2.5kg
  • 3-channel digital ECG machine with interpretation
  • Simultaneous acquisition of 12-lead ECG signal
  • Manual/auto/arrhythmia analysis modes
  • Real-time ECG and 20 patients cases
  • Multiple printing modes
  • 80mm 3-inch recording with rhythm lead
  • 320 x 240 graphic and 3.8-inch LCD
  • High resolution thermal printing system
  • High resolution digital filter
  • Built-in USB or RS232, optional PC-ECG software
  • AC/DC power, built-in rechargeable NiMH battery
  • Lightweight with handle, convenient for use
  • Safety standards: IEC60601-1 class I and type CF
  • Lead: standard 12 leads, lead changes automatically
  • Resolution: 12 bits/1,000Hz
  • Operation modes: manual/auto/analysis modes
  • Filters: AC and EMG
  • Drift filter: anti-drift system
  • Input circuits: floating, protection against defibrillator effect
  • CMRR: greater than 100dB (with filter)
  • Input circuit current: <0.1μA
  • Input impedance: ≥50ΜΩ
  • Calibrating voltage: 1mV±3%
  • Frequency responses: 0.05 to 160Hz (IEC)
  • Time constant: >3.2 seconds
  • Noise levels: ≤15Vp-p
  • Threshold: ≤20μV
  • Sensitivities: auto 2.5, 5, 10, 20 and 0mm/mV
  • Recording system: high resolution thermal printer
  • Paper speeds: 25, 50mm/s±3%
  • Recording papers: 80 x 20m, roll/fold paper
  • Power supply:
    • AC: 220/110V, 50/60Hz
    • DC: 14.4V rechargeable Li-ion battery (2,200mAh)
  • LCD display: 320x240 graphic and 3.8-inch LCD
  • Dimensions: 285 x 265 x 72mm
  • Weight: 2.5kg
  • AC: 220/110V, 50/60Hz
  • DC: 14.4V rechargeable Li-ion battery (2,200mAh)
