7-inch Fetal Monitor CTG Machine with Tocodynagraph, Phonocardiograph and Printer, CE-certified

7-inch Fetal Monitor CTG Machine with Tocodynagraph, Phonocardiograph and Printer, CE-certified

Get Latest Price

Payment Type:: 100% T/T in Advance, PayPal, Western Union or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	100% T/T in Advance, PayPal, Western Union or L/C

Product Description

Specifications:

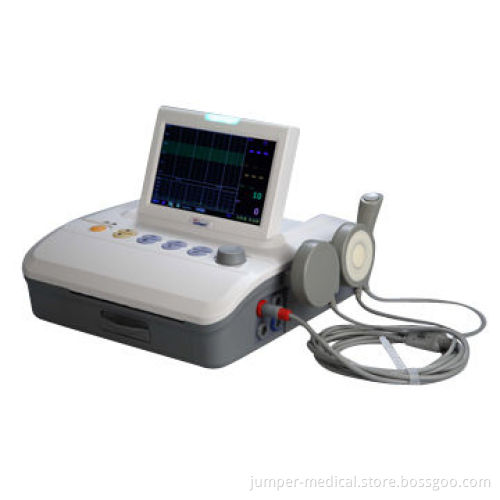

Fetal monitor CTG machine JPD-300P (7 inches)
JPD-300P is high-end fetal monitor, offers most advanced integrated monitoring for delivery room in large hospital, private obstetrician's office, antepartum clinic
They are designed for use in moving situation covers entire continuum of antepartum and intrapartum applications

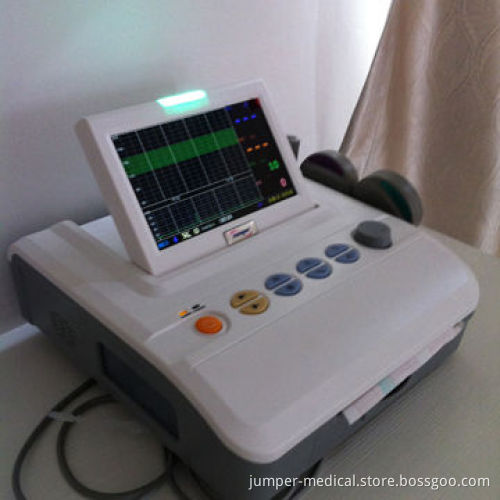

7-inch TFT color LCD displays FHR, TOCO curve and maternal parameters and monitoring
States, meanwhile has data storage and playback functions
Internal line thermal recorder can records FHR, TOCO, lifespan exceeds over 20 years
Advanced DSP technology, accurate and reliable
Multiple crystal, wide beam form, high sensitivity ultrasound transducer, 1MHz pulsed wave, low ultrasound power and safer to fetal
Standard patient event marker and clinical event marking button to separately mark clinical events
3-in-1 transducers and no cable inter twisting
Operate with encoder for easy and convenient use
Many alarm functions are included: monitoring time over alarm, no paper alarm

Default configurations:

Main unit: the main unit has the LCD module, recorder and electronic circuitry-microprocessor, signal processing, audio system, display systems and power supply
Signals from the transducers are processed and displayed on the large LCD display, and the menu can be adjust by encoder
The key on control panel can be set up the system parameter, freeze display, adjust volume, printer control, alarm control and so on
adapter and power wire

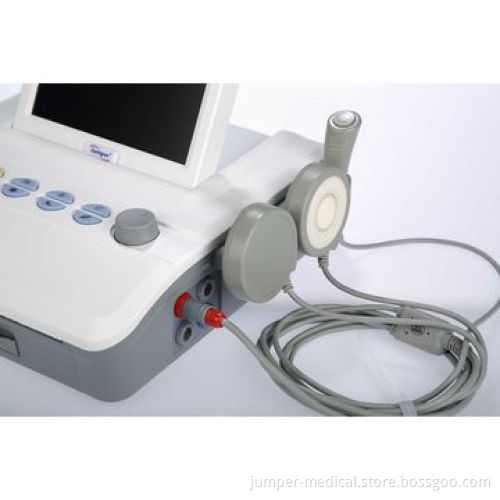

3 in 1 transducer (U/S, TOCO and remote even market), the 3-in-1 transducer are held in place on the abdomen by elastic straps
The pregnant woman hold the marker, push the button when she feels fetal moving or uterine activity

Options:

Maternal SpO2, HR, NIBP and temperature measurement
Maternal ECG and PR measurement

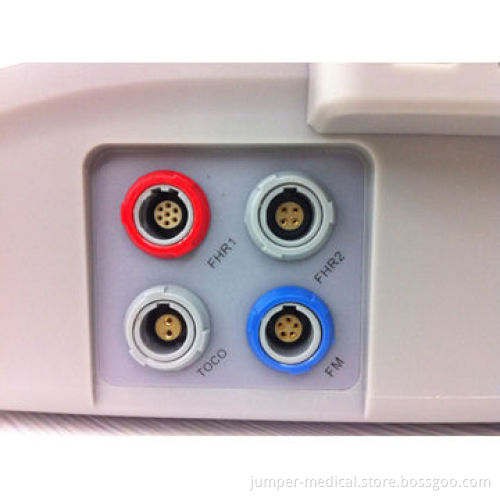

Twins monitor interface, twin FHR measurement

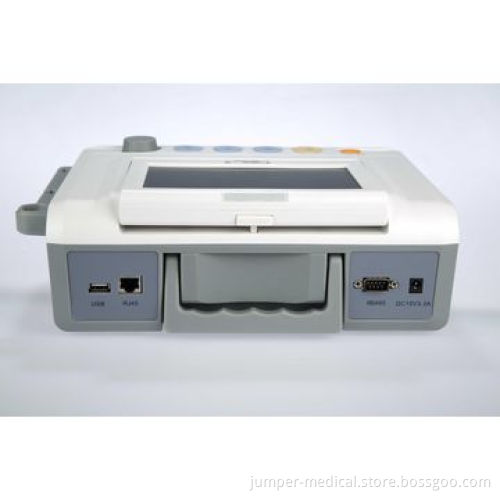

Built-in network/PC connecting interface
FAS ( Fetal Acoustic Stimulator)

Fetal monitor CTG machine JPD-300P (7 inches)

JPD-300P is high-end fetal monitor, offers most advanced integrated monitoring for delivery room in large hospital, private obstetrician's office, antepartum clinic

They are designed for use in moving situation covers entire continuum of antepartum and intrapartum applications

7-inch TFT color LCD displays FHR, TOCO curve and maternal parameters and monitoring

States, meanwhile has data storage and playback functions

Internal line thermal recorder can records FHR, TOCO, lifespan exceeds over 20 years

Advanced DSP technology, accurate and reliable

Multiple crystal, wide beam form, high sensitivity ultrasound transducer, 1MHz pulsed wave, low ultrasound power and safer to fetal

Standard patient event marker and clinical event marking button to separately mark clinical events

3-in-1 transducers and no cable inter twisting

Operate with encoder for easy and convenient use

Many alarm functions are included: monitoring time over alarm, no paper alarm

Main unit: the main unit has the LCD module, recorder and electronic circuitry-microprocessor, signal processing, audio system, display systems and power supply

Signals from the transducers are processed and displayed on the large LCD display, and the menu can be adjust by encoder

The key on control panel can be set up the system parameter, freeze display, adjust volume, printer control, alarm control and so on

adapter and power wire

3 in 1 transducer (U/S, TOCO and remote even market), the 3-in-1 transducer are held in place on the abdomen by elastic straps

The pregnant woman hold the marker, push the button when she feels fetal moving or uterine activity

Maternal SpO2, HR, NIBP and temperature measurement

Maternal ECG and PR measurement

Twins monitor interface, twin FHR measurement

Built-in network/PC connecting interface

FAS ( Fetal Acoustic Stimulator)

Range: 0-100 (relative unit)

Resolution: 1bpm
