High-definition Resolution up to 4K x 2K 1 Input/4 Output HDMI Splitter

High-definition Resolution up to 4K x 2K 1 Input/4 Output HDMI Splitter

Get Latest Price

Payment Type:: T/T or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or PayPal

Product Description

HDMI^® (with 3D and 4K x 2K)Distributes 1 HDMI source to 4 HDMI displays simultaneously

Supports all mandatory and several optional 3D formats described in HDMI specifications

Supports digital audio format, such as high definition audio

Supports 3D video

Supports Dolby true HD and DTS-HD master audio

Power consumption: 5V (maximum)

Voltage: 5V DC

Vertical frequency range: 60Hz

Resolution: 4K x 2K at 24Hz, 1,080p at 60Hz and 720p/1,080i at 120Hz

Video amplifier bandwidth: 140MH

zInput video signal: 0.5 to 1.0Vp-p

Input DDC signal: 5Vp-p (TTL)

Data transfer speed rate: 6.75Gbps

Supports video format:

DTV/HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p and 4K x 2K

Output video: HDMI + HDCP1.1

Supports video color format: xv-YCC/deep color 36 bits

Supports audio format: DTS-HD master audio Dolby true-HD

Transmission distance: 15m (maximum) over standard HDMI cable/26AWG

Operating temperature range: -5 to 35°C (23 to 95°F)

Operating humidity range: 5 to 90% RH (no condensation)

Dimensions: (L) 115 x (W) 62 x (H) 25mm

DTV/HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p and 4K x 2K

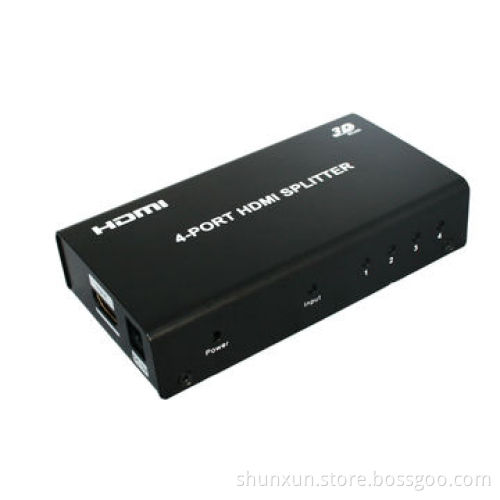

Foxun new 1 x 4 splitter

Supports all mandatory and several optional

3D formats described in HDMI specifications, maintains sharp HDTV resolution up to 1080p full HD and 4KX2K

HD video solution for supermarket, shopping mall, HDTV, STB, DVD and projector factory, data control center, conference room, education, training, luxurious house and home theater

Note: specifications are subject to change without notice, dimensions are approximate

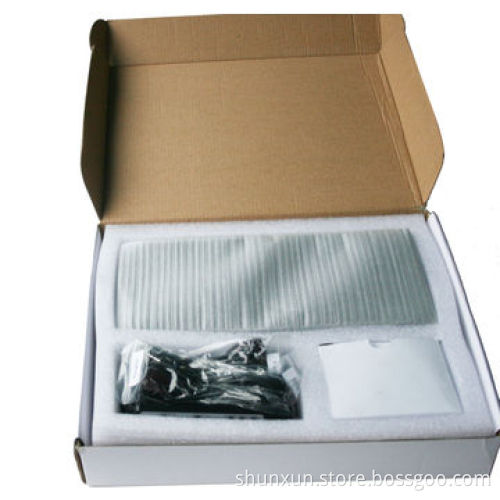

Packing:

Quantity: 20 pieces/carton
Gift box dimensions: (L) 20.5 x (W) 15 x (H) 5.7cm
Master carton dimensions: (L) 43 x (W) 32 x (H) 29.5cm
Net weight: 210g
Gross weight: 520g

Quantity: 20 pieces/carton

Gift box dimensions: (L) 20.5 x (W) 15 x (H) 5.7cm

Master carton dimensions: (L) 43 x (W) 32 x (H) 29.5cm

Net weight: 210g

Gross weight: 520g
