Distributes 1 input HDMI signal to 4 identical UTP outputs, 4 outputs are synchronized
Transmit over single 50m Cate5e/6 cable under 1080P at 8-bit with 3-D (transmission distance for the receiver also need up to 50m)
Supports resolutions up to 1080p at 60Hz
Supports high definition audio: Dolby TrueHD, DTS-HD and master audio
Supports 30/36bit deep color display
Support 3-D technologyWith DC 5V power
Operating temperature ranges: -5 to 35°C (23 to 95°F)
Operating humidity ranges: 5 to 90%RH (no condensation)
Video amplifier bandwidth: 140MHz
Input video signal: 0.5 to 1.0V P-P
Input DDC signal: 5V P-P (TTL)
Data transfer speed rate: 6.75Gbps (maximum)
Supports video formats VGA: 640 x 480, 800 x 600, 1,024 x 768 and 1,080 x 1,024DTV/HDTV: 480i/576i/480P/576P/720P/1080i/1080P and 3-D video
Vertical frequency range: 60Hz
Video output: HDMI and HDCP1.1
Supports video color format: xv-YCC/deep color 36-bit
Supports audio formats: DTS-HD master audio, Dolby true-HD and more
Transmission distance: 1080P 8-bit 50m (if needed HDMI extender is optional ) over single UTP cat5e/6 cable/24AWG/solid
Power consumption: 15 watts (maximum)
Dimensions (L x W x H): 185 x 82 x 32mm
Net weight: 490g
Gross weight: 855g
Gift box dimensions (L x W x H): 300 x 155 x 65cm
Master carton dimensions (L x W x H): 34 x 31x 33cm
Quantity: 10/carton
Note: specifications are subject to change without notice, mass and dimensions are approximate, when 36b-bit deep color mode/suggest set the HDMI source device to output 1080i or 720p

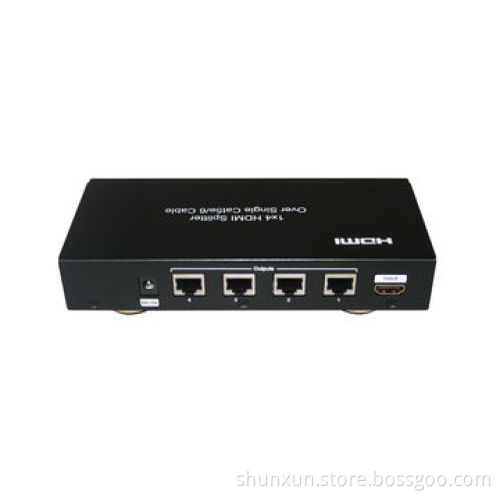

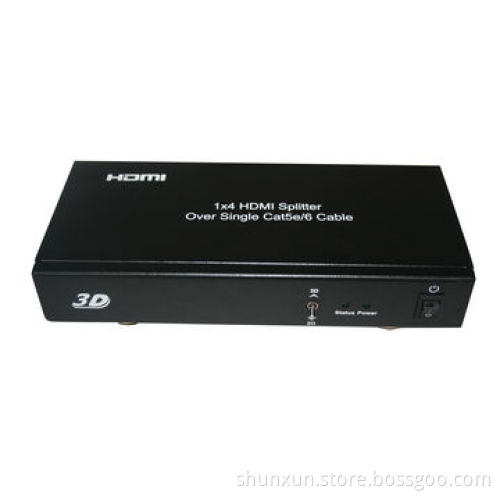

Foxun 1.3v 1x4 HDMI splitter via single UTP cat5e/6 cables/has 1 HDMI input/4 UTP outputs
Perfect solution to extend HDMI signals via UTP cable up to 50m under 1080p at 8-bit with 3-D
Offers HD video solution for super market/shopping mall/HDTV/STB/DVD and projector factory/data control center/conference rooms/education/training/luxurious house/home theaters
