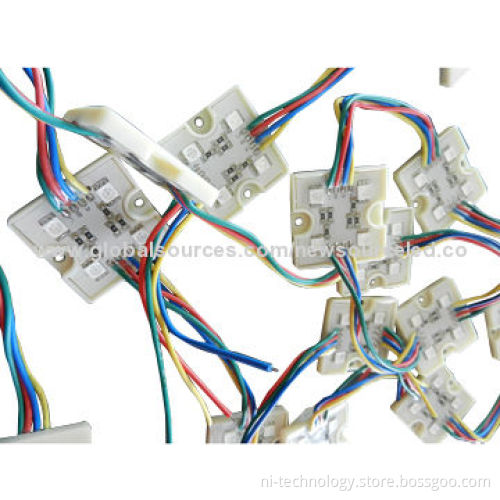

36*36 4-piece Plastic Shell SMD5050 Water-resistant RGB LED Module for Channel Letter Signage
  • 36*36 4-piece Plastic Shell SMD5050 Water-resistant RGB LED Module for Channel Letter Signage
36*36 4-piece Plastic Shell SMD5050 Water-resistant RGB LED Module for Channel Letter Signage

36*36 4-piece Plastic Shell SMD5050 Water-resistant RGB LED Module for Channel Letter Signage

Get Latest Price
Payment Type:
T/T, PayPal, Western Union or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal, Western Union or L/C
Product Description
Product Description
  • Specification:
    • Operating voltage: 12V DC
    • Power consumption: 1.44W/pc
    • Dimensions: 36 * 36*4mm
    • LED type: Epistar Tri Chip SMD 5050
    • Number of LEDs in unit: 4 LEDs
    • Wave length:
      • R: 625-630nm
      • G: 520-523nm
      • B: 465-468nm
    • Colors available: pure white/nature white/warm white/red/green/blue/yellow/RGB
    • Beam angle: 120°
    • Driven mode: constant voltage
    • Water resistance: IP65
    • Operating temperature: -40-70°C
  • Features:
    • Widely use in resin channel letters, numbers and signage which depth 8-20mm
    • Adopts 4pc Epistar Tri chip SMD5050, 20-22 luminous per chips
    • Double RF4 fiberglass panels provide a good heat dissipation
    • 10cm gray (positive) and white (negative) wire between every two modules
    • Water-resistant class can be reach IP65, you can use it outdoor
    • 20pcs per string, each module can be cut individually
    • 50,000 hours long lifespan
  • Applications:
    • Small stroke signage, resin plastic letters, resin metal letters, resin acrylic letters, resin LED channel letters
  • Operating voltage: 12V DC
  • Power consumption: 1.44W/pc
  • Dimensions: 36 * 36*4mm
  • LED type: Epistar Tri Chip SMD 5050
  • Number of LEDs in unit: 4 LEDs
  • Wave length:
    • R: 625-630nm
    • G: 520-523nm
    • B: 465-468nm
  • Colors available: pure white/nature white/warm white/red/green/blue/yellow/RGB
  • Beam angle: 120°
  • Driven mode: constant voltage
  • Water resistance: IP65
  • Operating temperature: -40-70°C
  • R: 625-630nm
  • G: 520-523nm
  • B: 465-468nm
  • Widely use in resin channel letters, numbers and signage which depth 8-20mm
  • Adopts 4pc Epistar Tri chip SMD5050, 20-22 luminous per chips
  • Double RF4 fiberglass panels provide a good heat dissipation
  • 10cm gray (positive) and white (negative) wire between every two modules
  • Water-resistant class can be reach IP65, you can use it outdoor
  • 20pcs per string, each module can be cut individually
  • 50,000 hours long lifespan
  • Small stroke signage, resin plastic letters, resin metal letters, resin acrylic letters, resin LED channel letters
