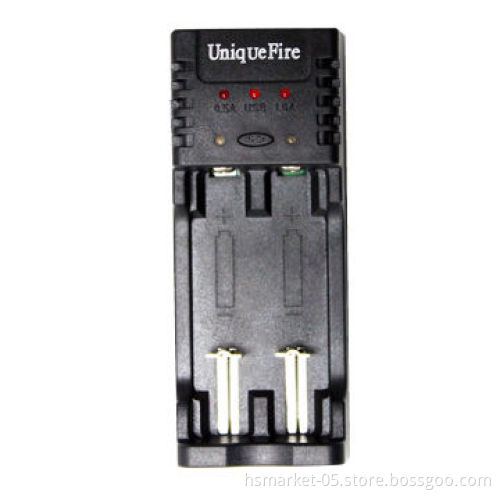

Smart charger with 2 full charged batteriesNew

Smart charger with 2 full charged batteriesNew

Get Latest Price

Payment Type:: T/T or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or PayPal

Product Description

Features:

Compatible with most 3.7V Li-ion or LiMn batteries like 10400,14500, 14650, 18500, 17670, 18650 and 18700
Can charge 10440, 16340 and 18350 with 2-piece spacers
Green/red LED indicators for standby, charging and full charged

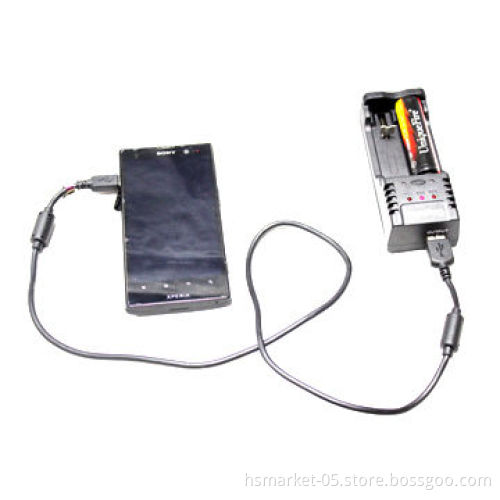

With 2 full charged batteries, BC-02 charge also can charge those devices power blow 5.0V/500mA, such as mobile phone and MP3 player
Built-in auto cut off device, timer protection, which can prevent charger from short-circuit caused by exposure, wrong polarity and un-proper usage

Functional specifications:

USB gear: USB 5.0V/500mA voltage output
0.5A gear: charging current 500mA
1A gear: charging current 1,000mA
Once external power is connected with BC-02 charger, system begins to self-inspection, then gear indicator of 0.5A being on in red, indicators of channels turn green
Standby for changing
BC-02 charger starts to charge batteries in 3 seconds after batteries are properly inserted
Indicator lights being red until batteries are full charged and lights will turn green
When BC-02 charger is in standby status, insert over-discharging batteries
Battery voltage: ≤2.0V properly
Charger will start activation capabilities of battery
After battery activated, indicator turns red, then batteries will be charged as normal
After battery inserted into left channel, USB output indicator turn red without inputting external power at this moment
If take battery away from left channel, USB output indicator will turn off and there are no output from USB socket
Charging current gear: 0.5 to 1.0A
Will be transformed between 0.5 and 1.0A by press button
Default gear: 0.5A

Note: due to disparate over-discharge frequency, capacity and over-discharge degree, time of battery activation are various

Compatible with most 3.7V Li-ion or LiMn batteries like 10400,14500, 14650, 18500, 17670, 18650 and 18700

Can charge 10440, 16340 and 18350 with 2-piece spacers

Green/red LED indicators for standby, charging and full charged

With 2 full charged batteries, BC-02 charge also can charge those devices power blow 5.0V/500mA, such as mobile phone and MP3 player

Built-in auto cut off device, timer protection, which can prevent charger from short-circuit caused by exposure, wrong polarity and un-proper usage

USB gear: USB 5.0V/500mA voltage output

0.5A gear: charging current 500mA

1A gear: charging current 1,000mA

Once external power is connected with BC-02 charger, system begins to self-inspection, then gear indicator of 0.5A being on in red, indicators of channels turn green

Standby for changing

BC-02 charger starts to charge batteries in 3 seconds after batteries are properly inserted

Indicator lights being red until batteries are full charged and lights will turn green

When BC-02 charger is in standby status, insert over-discharging batteries

Battery voltage: ≤2.0V properly

Charger will start activation capabilities of battery

After battery activated, indicator turns red, then batteries will be charged as normal

After battery inserted into left channel, USB output indicator turn red without inputting external power at this moment

If take battery away from left channel, USB output indicator will turn off and there are no output from USB socket

Charging current gear: 0.5 to 1.0A

Will be transformed between 0.5 and 1.0A by press button

Default gear: 0.5A
