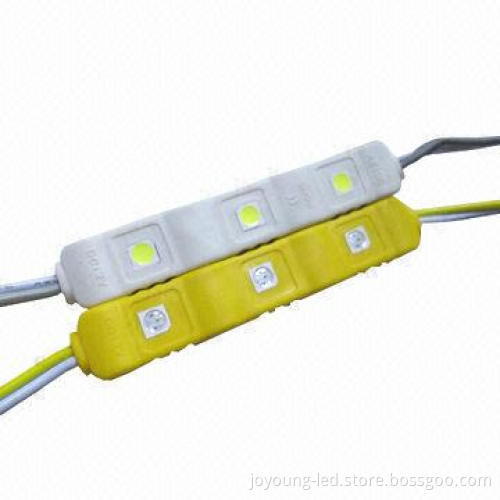

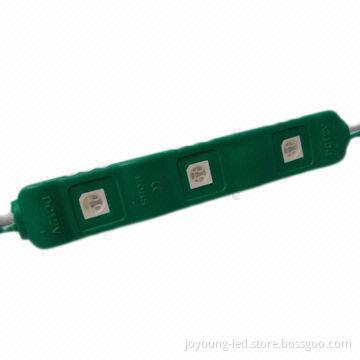

Waterproof 3 LEDs module, Epistar, SMD 5050, 0.75W, 12V, IP65

Waterproof 3 LEDs module, Epistar, SMD 5050, 0.75W, 12V, IP65

Get Latest Price

Payment Type:: PayPal, Western Union or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, Western Union or T/T

Product Description

Features:

Super high brightness: 5050 SMD LED waterproof with injection molding
Module adopts 2-piece 3-chip SMD LED as luminous body with high intensity and can emit higher brightness
Larger chip in LED
No spot and shadow
Colors: red, blue, green, yellow and white
Safe and stable
Maintenance-free
Low power consumption, up to 60% more energy efficient than neon and nice heat dissipation
Lifespan: 50,000 to 80,000 hours
Totally waterproof with IP65, works well under harsh conditions
Easy to install with mounting holes and 3M adhesive tape on back for convenient mounting
Eco-friendly
Certifications: CE and UL
RoHS Directive-compliant

Specifications:

LED type: SMD 5050
LED quantity: 3 pieces
Dimensions: 73 x 12.5 x 7mm
Weight: 10kg ±5%/1000 pieces
Cover: plastic and PCB
Working temperature: -40 to +60°C
Protection grade: IP68, PCB must be covered by resin
Input voltage: 12V DC
Power: 0.75W
Work mode: static voltage
Current: 18mA
Luminous flux: 18 to 20lm and >20lm
Beam angle: 150 to 180°

Installation method: find 3M tape on back, paste to installation surface, please make sure installation clean surface, dry and no oil dirt, advise smooth down mounting surface to fix on tightly

Connection way: 3 strings (60 pieces) in series connection

Applications:
