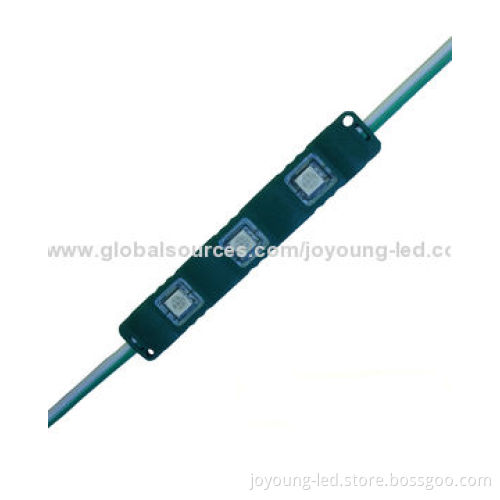

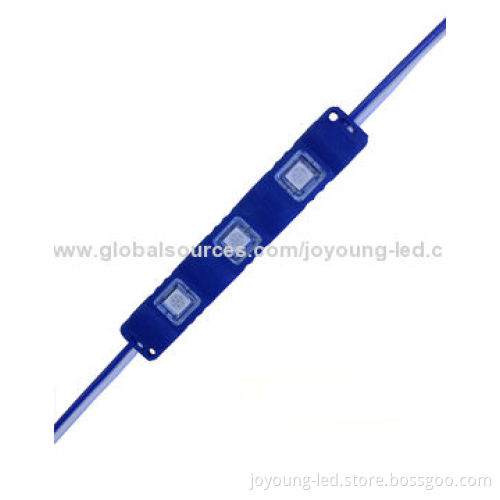

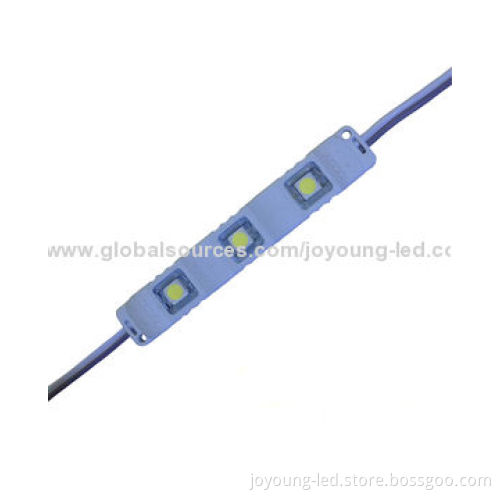

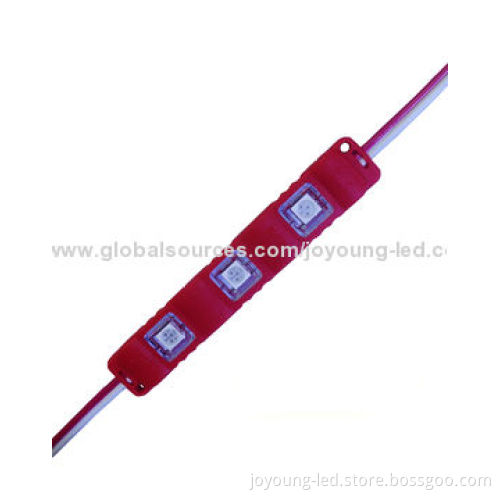

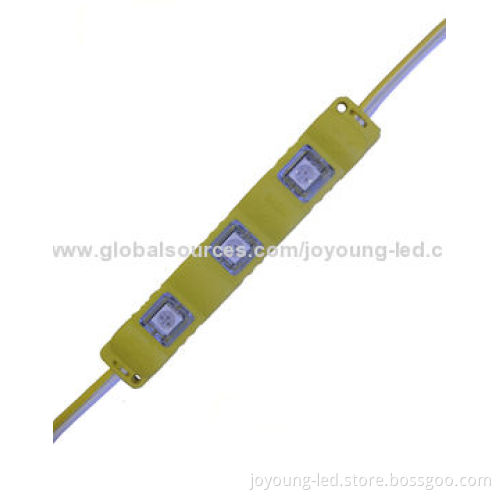

LED Injection Modules with PC Cover, Available in 5 Colors, 0.75W Power, 12V DC Input Voltage, IP67

LED Injection Modules with PC Cover, Available in 5 Colors, 0.75W Power, 12V DC Input Voltage, IP67

Get Latest Price

Payment Type:: PayPal, Western Union or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, Western Union or T/T

Product Description

Specifications:

Power: 0.75W
Input voltage: 12V DC

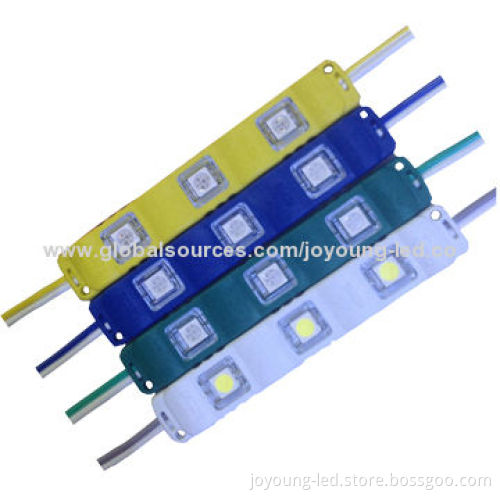

Colors: white, red, green, blue, yellow, five colors are available
LED type: 5050 SMD
LED quantity: 3 pieces
Dimension: 73 x 12.5 x 7mm
Weight: 10kg ±5%/1,000 pieces
Cover: plastic and PCB
Working temperature: -40 to 60°C
Protection grade: IP67
PCB covered by resin
Working mode static voltage current: 18mA
Light performance
Luminous flux: 18 to 20lm (≥20lm)
Beam angle:
- 3-chip 5050 SMD LED angle: 150 to 180°

Features:

Super high brightness: 5050 SMD LEDs waterproof module adopts 3-chip SMD LEDs as its luminous body with high intensity and can emit higher brightness at lower cost
Large chip in LED
No spot
No shadow
Safe and stable
Maintenance-free
Low power consumption, up to 60% more energy efficient than neon and excellent heat dissipation
Long lifespan: 50,000 to 80,000 hours
Totally waterproof with IP67, works well under harsh conditions
Easy to install with mounting holes and 3M adhesive tape on back for convenient mounting
Eco-friendly
Compliant with CE standards and the RoHS Directive

Applications:

Commercial advertisement sign backlight
Channel letter backlight
Advertisement light box backlight and decoration

Power: 0.75W

Input voltage: 12V DC

Colors: white, red, green, blue, yellow, five colors are available

LED type: 5050 SMD

LED quantity: 3 pieces

Dimension: 73 x 12.5 x 7mm

Weight: 10kg ±5%/1,000 pieces

Cover: plastic and PCB

Working temperature: -40 to 60°C

Protection grade: IP67

PCB covered by resin

Working mode static voltage current: 18mA

Light performance

Luminous flux: 18 to 20lm (≥20lm)

Beam angle:

3-chip 5050 SMD LED angle: 150 to 180°

3-chip 5050 SMD LED angle: 150 to 180°

Super high brightness: 5050 SMD LEDs waterproof module adopts 3-chip SMD LEDs as its luminous body with high intensity and can emit higher brightness at lower cost

Large chip in LED

No spot

No shadow

Safe and stable

Maintenance-free

Low power consumption, up to 60% more energy efficient than neon and excellent heat dissipation

Long lifespan: 50,000 to 80,000 hours

Totally waterproof with IP67, works well under harsh conditions

Easy to install with mounting holes and 3M adhesive tape on back for convenient mounting

Eco-friendly

Compliant with CE standards and the RoHS Directive

Commercial advertisement sign backlight
