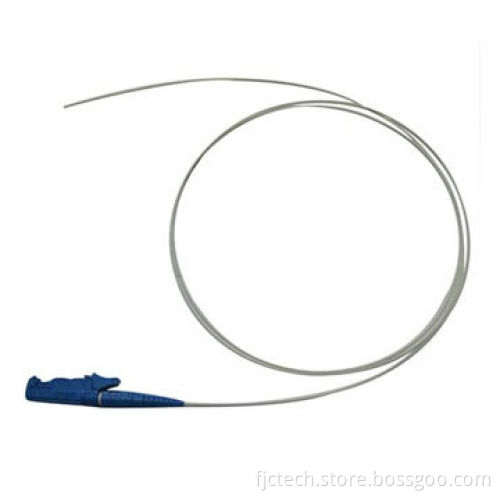

E2000/UPC Single-mode, 9/125 0.9mm, Fiber-optic Pigtail
  • E2000/UPC Single-mode, 9/125 0.9mm, Fiber-optic Pigtail
E2000/UPC Single-mode, 9/125 0.9mm, Fiber-optic Pigtail

E2000/UPC Single-mode, 9/125 0.9mm, Fiber-optic Pigtail

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Features:
    • Offers optimal solution for high-speed data transmission
    • FC-FC connectors
    • 100% tested for reliability and performance
  • Parameters:
    • Single mode (9/125)
    • Maximum insertion loss:
      • PC: 0.3dB
      • APC: 0.2dB
    • Minimum return loss:
      • PC: 50dB
      • APC: 60dB
    • Maximum attenuation:
      • 1310nm: 0.4dB/km
      • 1550nm: 0.22dB/km
    • Multi mode (50/125, 62.5/125, OM3)
    • Maximum insertion loss: 0.5dB
    • Minimum return loss: 25dB
    • Maximum attenuation:
      • 62.5/125μm: 0.7dB/km
      • 50/125μm: 2.3dB/km
      • 10G 50/125μm: 2.5dB/km
    • Operating temperature: -40 to +75°C
    • Storage temperature: -40 to +80°C
  • Applications:
    • Telecommunications
    • Local area network (LAN)
    • Fiber to home (FTTH)
    • Optical patch panels
    • Testing instruments
    • CATV
  • Offers optimal solution for high-speed data transmission
  • FC-FC connectors
  • 100% tested for reliability and performance
  • Single mode (9/125)
  • Maximum insertion loss:
    • PC: 0.3dB
    • APC: 0.2dB
  • Minimum return loss:
    • PC: 50dB
    • APC: 60dB
  • Maximum attenuation:
    • 1310nm: 0.4dB/km
    • 1550nm: 0.22dB/km
  • Multi mode (50/125, 62.5/125, OM3)
  • Maximum insertion loss: 0.5dB
  • Minimum return loss: 25dB
  • Maximum attenuation:
    • 62.5/125μm: 0.7dB/km
    • 50/125μm: 2.3dB/km
    • 10G 50/125μm: 2.5dB/km
  • Operating temperature: -40 to +75°C
  • Storage temperature: -40 to +80°C
  • PC: 0.3dB
  • APC: 0.2dB
  • PC: 50dB
  • APC: 60dB
  • 1310nm: 0.4dB/km
  • 1550nm: 0.22dB/km
  • 62.5/125μm: 0.7dB/km
  • 50/125μm: 2.3dB/km
  • 10G 50/125μm: 2.5dB/km
  • Telecommunications
  • Local area network (LAN)
  • Fiber to home (FTTH)
  • Optical patch panels
  • Testing instruments
  • CATV
