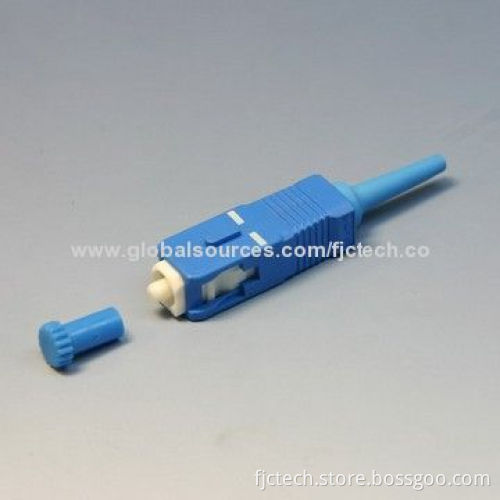

SC/PC 3.0mm Fiber-optic Connector, PC and APC, UPC are Available

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Insertion loss

Single mode: ≤0.2dB

Multi-mode: ≤0.3dB

Return loss:

Durability: <0.2dB typical change, 1,000 mating

Operating temperature: -40 to 80°C

Ferrule hole sizes:

Single mode:
- 125.0 + 1/-0um, concentricity ≤1.0um
- 125.5 + 1/-0um, concentricity ≤1.0um
- 126.0 + 1/-0um, concentricity ≤1.0um
Multi-mode:
- 125um concentricity: ≤3um
- 127um concentricity: ≤3um
- 128um concentricity: ≤3um

Availability:

PC: ≥50dB

UPC: ≥55dB

APC: ≥65dB

Single mode:

Multi-mode:

125.0 + 1/-0um, concentricity ≤1.0um

125.5 + 1/-0um, concentricity ≤1.0um

126.0 + 1/-0um, concentricity ≤1.0um

125um concentricity: ≤3um

127um concentricity: ≤3um

128um concentricity: ≤3um

Can be supplied as a pre-assembled one piece or one piece or as connector kit

Clips are available for SC and LC duplex connector

Boots in a variety of colors

PC and APC, UPC are available
