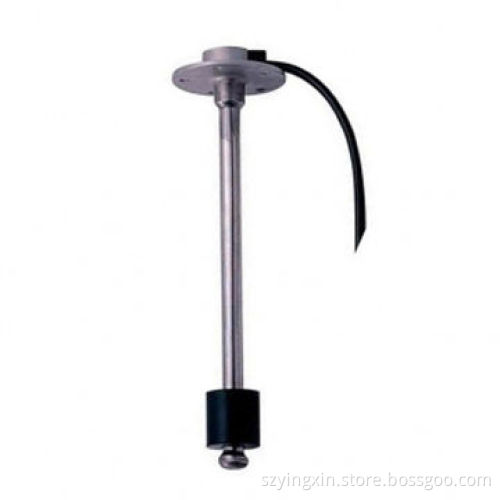

Smart Diesel Oil Fuel Water Tank Level Transducer (WLV102)

Smart Diesel Oil Fuel Water Tank Level Transducer (WLV102)

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

The Diesel Oil Fuel Water Tank Level Transducer WLV102 is special for monitoring and measuring diesel oil, diesel fuel, and water level in vehicles, power generator, trucks or other tanks, simple in structure and installation and maintenance. with protection sleeve filter. The length can be from 100mm to 2000mm according to requirements in field.

When the liquid level change, it will caused the float ball up and down, then creates a correspond linear electrical signal output of 0~5V DC to data acquisition module or controller or others.

The sensor part can be immersed into the liquid and the transmitter can be fixed by flange mounted or Bracket, easily to install and use.

Features:

Stability , high precision;
Directly immerse into the measured medium, very easy to install and use;
Solid-state structure, no moving parts, high reliability , long life from the water;
Standard 0-5V DC output for RTU, PLC and acquisition equipments;
Wide range for measurements from 100mm~2000mm.
With power reverse polarity protection and overload current limit protection .

Specification:

Measurement range: standards 450mm, optional 100mm～2000mm;(According to customer requirement.)
Precision: 8mm, 10mm, 12mm, 16mm, 21mm;
Main material: SUS304/316;
Working temperature: -40～+85 deg. C
Output: 2-wire 0~5V DC ;
Working Power: 9～36V DC;
International SAE5, SAE6, BSP Screw, NPT Screw type for installation.

Stability , high precision;

Directly immerse into the measured medium, very easy to install and use;

Solid-state structure, no moving parts, high reliability , long life from the water;

Standard 0-5V DC output for RTU, PLC and acquisition equipments;

Wide range for measurements from 100mm~2000mm.

With power reverse polarity protection and overload current limit protection .

Measurement range: standards 450mm, optional 100mm～2000mm;(According to customer requirement.)

Precision: 8mm, 10mm, 12mm, 16mm, 21mm;

Main material: SUS304/316;

Working temperature: -40～+85 deg. C

Output: 2-wire 0~5V DC ;

Working Power: 9～36V DC;
