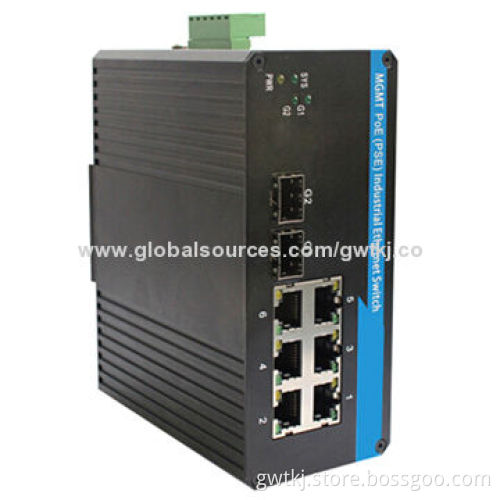

Gigabit PoE Managed Industrial Ethernet Switch, network / fiber / power redundancy

Gigabit PoE Managed Industrial Ethernet Switch, network / fiber / power redundancy

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

GWT-IES-MP1206 series

6 IEEE802.3af/at -compliant PoE(PSE) and Ethernet combo ports

Provide up to 15.4w / 30w at -48V DC input per PoE port

Proprietary protocol “GWT-Ring” ( self-recovery time<15ms) and RSTP / STP / MSTP for network redundancy.

SNMPv3, IEEE802.1X, HTTPS and SSH to enhance network security

Web, CLI, Telnet/serial console, Windows utility, and SNMP management

Complies with standard industrial design:-40℃~85℃ operating temperature and redundant power input(-48V DC)

Protection level:IP40,aluminum chassis,cooling surface design

Overview

GWTIESMP1206 Series PoE managed Industrial Ethernet Switch are equipped with 2 SFP Gigabit ports,6 10/100M PoE(PSE) Ethernet ports,which support the “GWT-Ring”redundant ring ( self-recovery time<15ms),RSTP/STP/MSTP protocol to enhance the reliability of the network.The superb hardware reliability is especially suitable for industrial applications.

Features:

Advanced PoE management function for quickly configuration major managed functions
IGMP Snooping and GMRP for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
Port mirroring for online debugging
Multicast and broadcast storm control
Ethernet/IP and Modbus/TCP protocols for device management and monitoring
QoS and ToS/DiffServ for flow control and management
Port Trunking for optimum bandwidth utilization
RMON for efficient network monitoring and proactive capability
Lock port function for blocking unauthorized access based on MAC address
Bandwidth management prevents unpredictable network status
Automatic alarm through e-mail, relay output

GWTIESMP1206 Series PoE managed Industrial Ethernet Switch are equipped with 2 SFP Gigabit ports,6 10/100M PoE(PSE) Ethernet ports,which support the “GWT-Ring”redundant ring ( self-recovery time<15ms),RSTP/STP/MSTP protocol to enhance the reliability of the network.The superb hardware reliability is especially suitable for industrial applications.

Advanced PoE management function for quickly configuration major managed functions

IGMP Snooping and GMRP for filtering multicast traffic

Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

Port mirroring for online debugging

Multicast and broadcast storm control

Ethernet/IP and Modbus/TCP protocols for device management and monitoring

QoS and ToS/DiffServ for flow control and management

Port Trunking for optimum bandwidth utilization

RMON for efficient network monitoring and proactive capability

Lock port function for blocking unauthorized access based on MAC address

Bandwidth management prevents unpredictable network status

Automatic alarm through e-mail, relay output
