2 cores HDMI video optical transceiver

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Description:

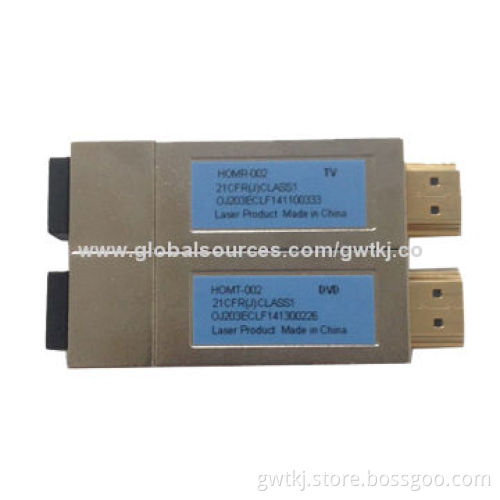

HOMT-002 and HOMR-002 are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless.HDMI 1.4a signal over multimode optical fiber at 850nm,up to distances of 300m,at a resolution of 4Kx2K.
HOMT-002 converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers.HOMR-002 converts the serial data back to an HDMI signal.The transceivers are ROHS compliant and lead-free per requirements in Europe and China.

Features:

HDMI 1.4a support
HDCP support
DDC CEC HPD signal support
Serialized data stream using GWT SD1502 and SD1512
Support up to 300m transmission distance at up to 10.3Gb/s with OM3 multimode fiber
Supports all modes up to 4Kx2Kx30 resolution
Standard HDMI connector
Integrated USB connector for power
Double power supply(HDMI 5V&USB)
Hot-Pluggable
EMI/RFI resistant
850nm VCSEL and PIN photodetector
2-wire interface
Typical power dissipation 1420mW(source),1220mW(sink)
Operating case temperature: 0~70℃

Note: if the HDMI source and sink can provide the enough current through the HDMI 5V pin,the USB cable is not needed.

Application: Optical HDMI for consumer and industrial applications

HOMT-002 and HOMR-002 are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless.HDMI 1.4a signal over multimode optical fiber at 850nm,up to distances of 300m,at a resolution of 4Kx2K.

HOMT-002 converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers.HOMR-002 converts the serial data back to an HDMI signal.The transceivers are ROHS compliant and lead-free per requirements in Europe and China.

HDMI 1.4a support

HDCP support

DDC CEC HPD signal support

Serialized data stream using GWT SD1502 and SD1512

Support up to 300m transmission distance at up to 10.3Gb/s with OM3 multimode fiber

Supports all modes up to 4Kx2Kx30 resolution

Standard HDMI connector

Integrated USB connector for power

Double power supply(HDMI 5V&USB)

Hot-Pluggable

EMI/RFI resistant

850nm VCSEL and PIN photodetector
