Gigabit industrial Ethernet media converter, IP40 protection, compliant w/ EMC industrial standard

Gigabit industrial Ethernet media converter, IP40 protection, compliant w/ EMC industrial standard

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

GWT-IMC-1114 series:

Support 4x10/100/1000M Ethernet RJ45 ports + 1x1000M optical port (SC/ST/FC/LC optional)
Support IEEE802.3, IEEE802.3x, IEEE802.3u standard
Support full/half-duplex, MDI/MDI-X adaptive
Lightning protection level: 4-grade for power port
Compliant with standard industrial design: -40-85°C operating temperature and dual redundant power input (18-36V DC)
Protection level: IP40, aluminum chassis, cooling surface design, no fan, no cooling holes

Overview:

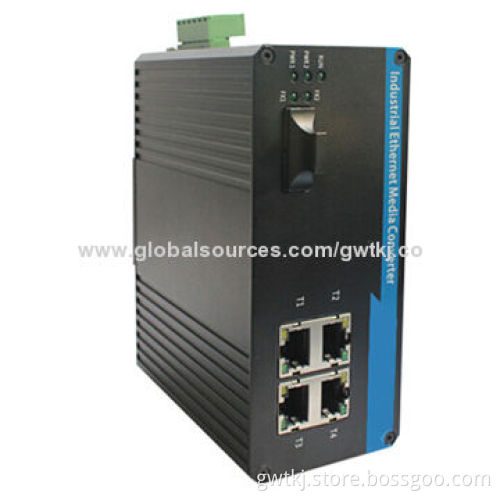

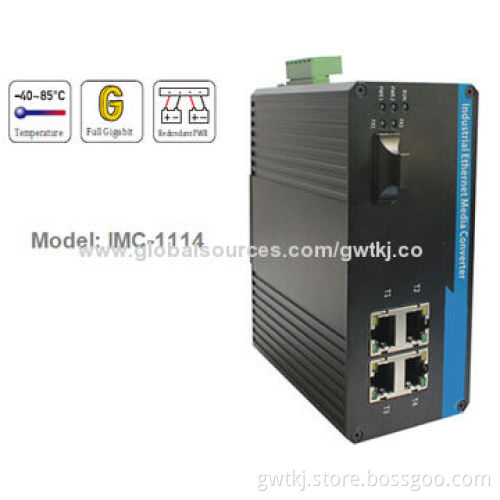

GWTIMC1114 series industrial Ethernet media converter are equipped with 1 1000Mbps optical port (SC/ST/FC/LC optional), 4 10/100/1000Mbps Ethernet RJ45 ports, which support IEEE802.3, IEEE802.3x,
IEEE803.3u standard and support full/half-duplex, MDI/MDI-X self-adaptive
The LED system status indication can help system maintainers monitor the connection status of the network

Specification:

Interface:
- Fiber port: 1000Base-FX, single/multimode, SC/ST/FC/LC optional
- RJ45 port: 10/100/1000Base-T(X) auto negotiation

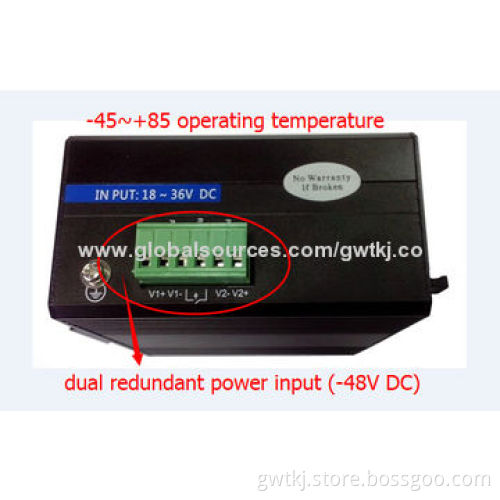

Power requirements:
- Input voltage: 24V DC (18-36V DC), redundant dual inputs
- Connector: 6-contact terminal blocks, 5.08mm
- Input current: <0.5A at 24V DC
- Overload current protection: supported
- Reverse polarity protection: supported
- Redundancy protection: supported
Mechanical properties:
- Housing: IP40 protection, aluminum chassis
- Dimensions: 60.5*118*140mm
- Weight: 670g
- Installation: DIN-rail mounting, wall mounting
Working environment:
- Operating temperature: -40-85°C
- Storage temperature: -40-85°C
- Relative humidity: 5-95% RH (non-condensing)
Standards/certifications:
- EMI: FCC CFR47 part 15, EN55022, class A
- EMS:
  - IEC61000-4-2 (ESD) level 4
  - IEC61000-4-3 (RS) 10V/m (80MHz-2GHz)
  - IEC61000-4-4 (EFT)
  - IEC61000-4-5 (surge)
  - IEC61000-4-8 (100A/m)
  - IEC61000-4-11
Machinery:
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
Industry: IEC61000-6-2
Railway: EN50155, EN50121-4

Support 4x10/100/1000M Ethernet RJ45 ports + 1x1000M optical port (SC/ST/FC/LC optional)

Support IEEE802.3, IEEE802.3x, IEEE802.3u standard

Support full/half-duplex, MDI/MDI-X adaptive

Lightning protection level: 4-grade for power port

Compliant with standard industrial design: -40-85°C operating temperature and dual redundant power input (18-36V DC)

Protection level: IP40, aluminum chassis, cooling surface design, no fan, no cooling holes

GWTIMC1114 series industrial Ethernet media converter are equipped with 1 1000Mbps optical port (SC/ST/FC/LC optional), 4 10/100/1000Mbps Ethernet RJ45 ports, which support IEEE802.3, IEEE802.3x,

IEEE803.3u standard and support full/half-duplex, MDI/MDI-X self-adaptive

The LED system status indication can help system maintainers monitor the connection status of the network

Interface:

Fiber port: 1000Base-FX, single/multimode, SC/ST/FC/LC optional
RJ45 port: 10/100/1000Base-T(X) auto negotiation

Power requirements:

Input voltage: 24V DC (18-36V DC), redundant dual inputs
Connector: 6-contact terminal blocks, 5.08mm
Input current: <0.5A at 24V DC
Overload current protection: supported
Reverse polarity protection: supported
Redundancy protection: supported

Mechanical properties:

Housing: IP40 protection, aluminum chassis
Dimensions: 60.5*118*140mm
Weight: 670g
Installation: DIN-rail mounting, wall mounting

Working environment:

Operating temperature: -40-85°C
Storage temperature: -40-85°C
Relative humidity: 5-95% RH (non-condensing)

Standards/certifications:

EMI: FCC CFR47 part 15, EN55022, class A
EMS:
- IEC61000-4-2 (ESD) level 4
- IEC61000-4-3 (RS) 10V/m (80MHz-2GHz)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (surge)
- IEC61000-4-8 (100A/m)
- IEC61000-4-11

Machinery:
